TT8U2TR

TT8U2TR

Part NumberTT8U2TR

ManufacturerRohm Semiconductor

DescriptionMOSFET P-CH 20V 2.4A TSST8

DatasheetTT8U2

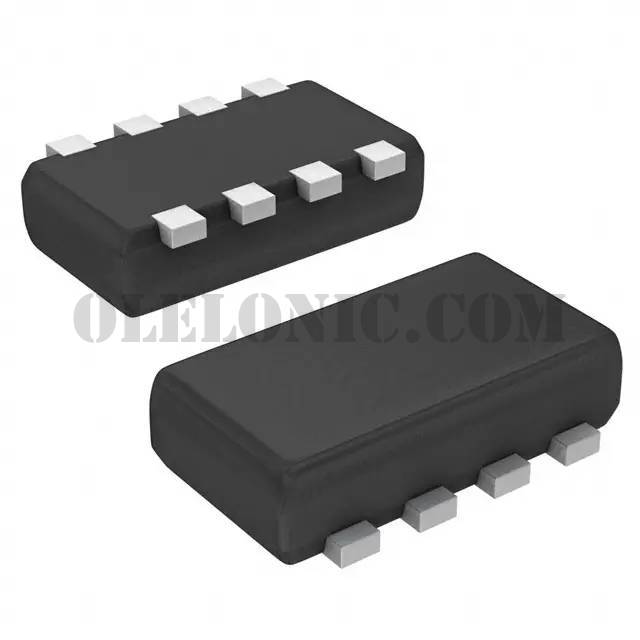

Package / Case8-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 2.4A (Ta) 1.25W (Ta) Surface Mount 8-TSST

To learn about the specification of TT8U2TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TT8U2TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TT8U2TR.
We are offering TT8U2TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TT8U2TR - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TT8U2
Standard Package	1
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	105mOhm @ 2.4A, 4.5V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	6.7nC @ 4.5V
Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	850pF @ 10V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	1.25W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-TSST
Package / Case	8-SMD, Flat Lead
