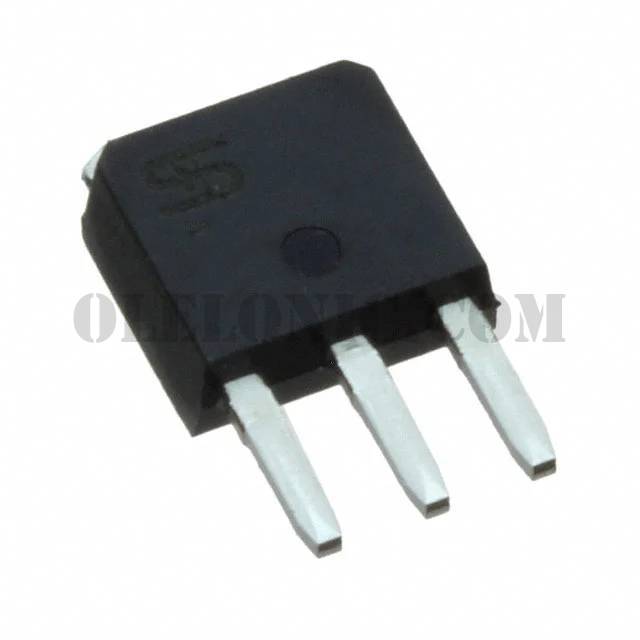

TSM900N10CH X0G

TSM900N10CH X0G

Part NumberTSM900N10CH X0G

ManufacturerTaiwan Semiconductor Corporation

DescriptionMOSFET N-CH 100V 15A TO251

DatasheetTSM900N10

Package / CaseTO-251-3 Stub Leads, IPak

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 15A (Tc) 50W (Tc) Through Hole TO-251 (IPAK)

To learn about the specification of TSM900N10CH X0G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSM900N10CH X0G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSM900N10CH X0G.
We are offering TSM900N10CH X0G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSM900N10CH X0G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TSM900N10
Standard Package	1875
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	90mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9.3nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1480pF @ 50V
FET Feature	-
Power Dissipation (Max)	50W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-251 (IPAK)
Package / Case	TO-251-3 Stub Leads, IPak
