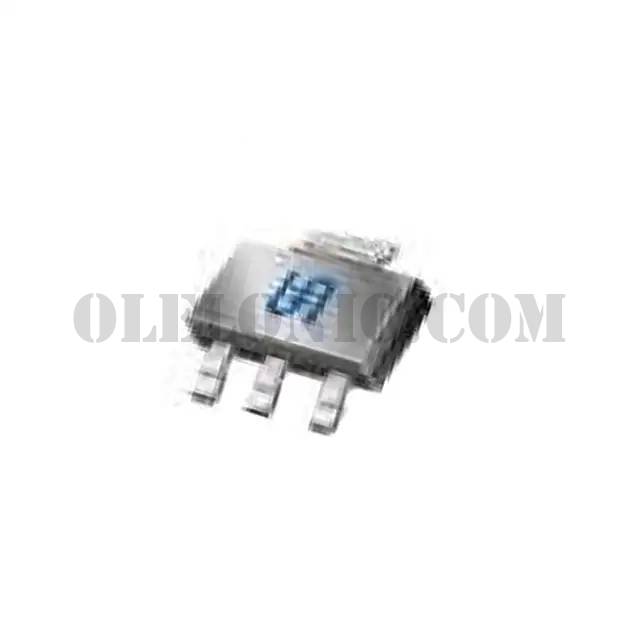

TSM1NB60CW RPG

TSM1NB60CW RPG

Part NumberTSM1NB60CW RPG

ManufacturerTaiwan Semiconductor Corporation

DescriptionMOSFET N-CHANNEL 600V 1A SOT223

DatasheetTSM1NB60

Package / CaseTO-261-4, TO-261AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 1A (Tc) 39W (Tc) Surface Mount SOT-223

To learn about the specification of TSM1NB60CW RPG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSM1NB60CW RPG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSM1NB60CW RPG.
We are offering TSM1NB60CW RPG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSM1NB60CW RPG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TSM1NB60
Standard Package	1
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	10Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.1nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	138pF @ 25V
FET Feature	-
Power Dissipation (Max)	39W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-223
Package / Case	TO-261-4, TO-261AA
