TPW1R306PL,L1Q

TPW1R306PL,L1Q

Part NumberTPW1R306PL,L1Q

ManufacturerToshiba Semiconductor and Storage

DescriptionX35 PB-F POWER MOSFET TRANSISTOR

DatasheetTPW1R306PL Datasheet

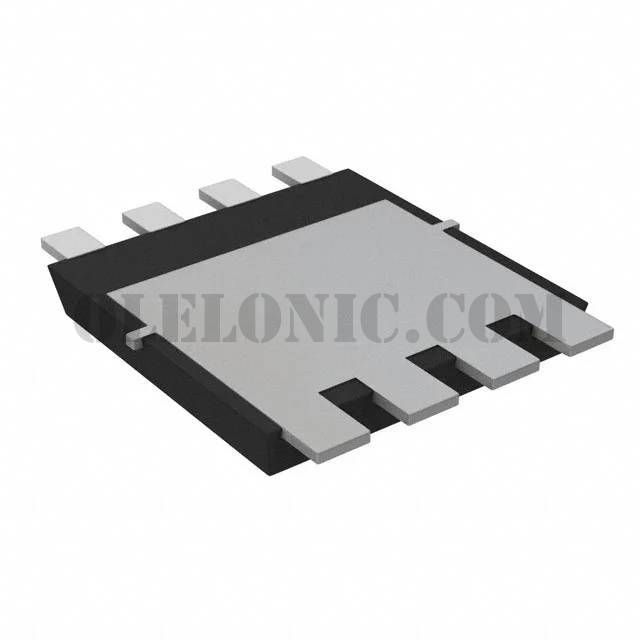

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 260A (Tc) 960mW (Ta), 170W (Tc) Surface Mount 8-DSOP Advance

To learn about the specification of TPW1R306PL,L1Q, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPW1R306PL,L1Q with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPW1R306PL,L1Q.
We are offering TPW1R306PL,L1Q for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TPW1R306PL,L1Q - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TPW1R306PL Datasheet
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSIX-H
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	260A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1.29mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	91nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8100pF @ 30V
FET Feature	-
Power Dissipation (Max)	960mW (Ta), 170W (Tc)
Operating Temperature	175°C
Mounting Type	Surface Mount
Supplier Device Package	8-DSOP Advance
Package / Case	8-PowerVDFN
