DMT6005LPS-13

DMT6005LPS-13

Part NumberDMT6005LPS-13

ManufacturerDiodes Incorporated

DescriptionMOSFET N-CHA 60V 17.9A POWERDI

DatasheetDMT6005LPS

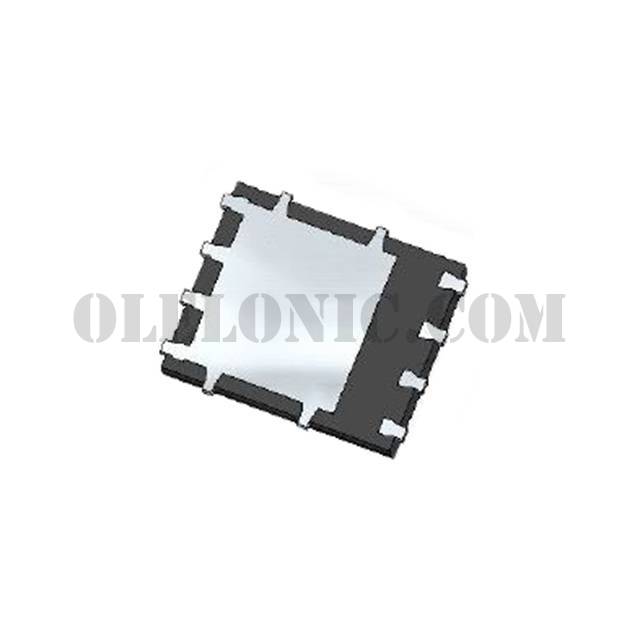

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 17.9A (Ta), 100A (Tc) 2.6W (Ta), 125W (Tc) Surface Mount PowerDI5060-8

To learn about the specification of DMT6005LPS-13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMT6005LPS-13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMT6005LPS-13.
We are offering DMT6005LPS-13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMT6005LPS-13 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMT6005LPS
Standard Package	2500
Manufacturer	Diodes Incorporated
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	17.9A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.9mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	47.1nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2962pF @ 30V
FET Feature	-
Power Dissipation (Max)	2.6W (Ta), 125W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerDI5060-8
Package / Case	8-PowerTDFN
