Categories	Capacitors / Electric Double Layer Capacitors (EDLC), Supercapacitors

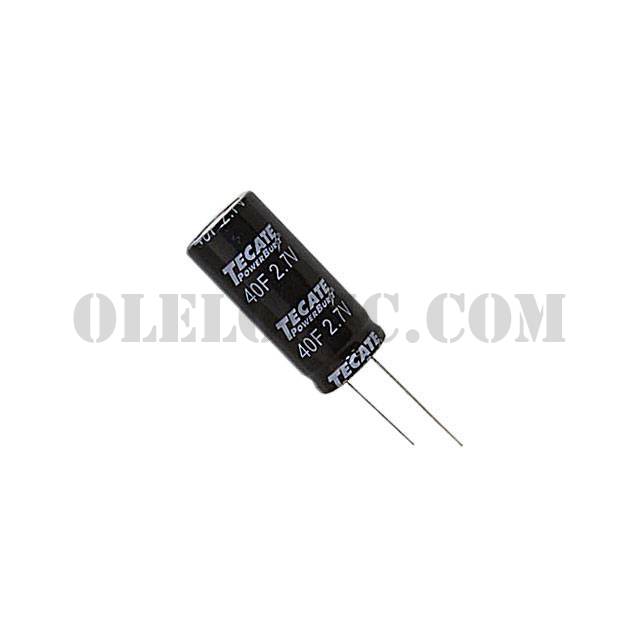

Datasheet	TPL-50/18X40F
Standard Package	50
Manufacturer	Tecate Group
Series	TPL
Packaging	Bulk
Part Status	Active
Capacitance	50F
Tolerance	-10%, +20%
Voltage - Rated	2.7V
ESR (Equivalent Series Resistance)	15mOhm @ 1kHz
Lifetime @ Temp.	1000 Hrs @ 85°C
Termination	PC Pins
Mounting Type	Through Hole
Package / Case	Radial, Can
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.634" (41.50mm)
Operating Temperature	-40°C ~ 85°C
