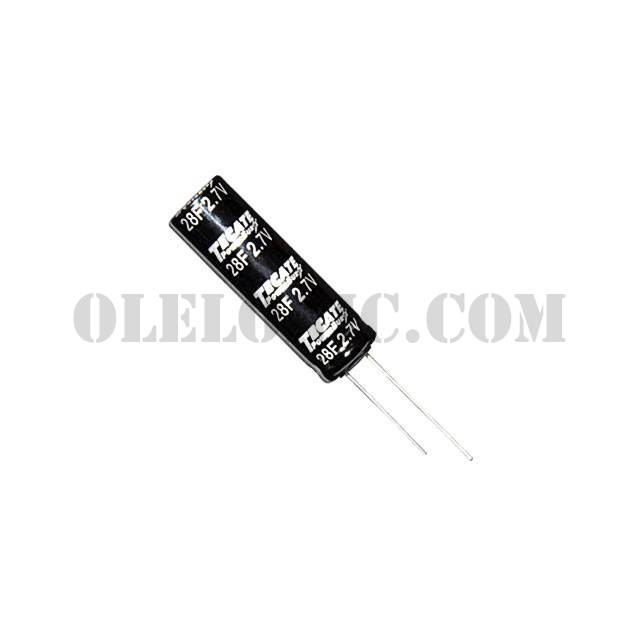

Categories	Capacitors / Electric Double Layer Capacitors (EDLC), Supercapacitors
Datasheet	TPL-28/12X40F
Standard Package	50
Manufacturer	Tecate Group
Series	TPL
Packaging	Bulk
Part Status	Active
Capacitance	28F
Tolerance	-10%, +20%
Voltage - Rated	2.7V
ESR (Equivalent Series Resistance)	25mOhm @ 1kHz
Lifetime @ Temp.	1000 Hrs @ 85°C
Termination	PC Pins
Mounting Type	Through Hole
Package / Case	Radial, Can
Lead Spacing	0.209" (5.30mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.634" (41.50mm)
Operating Temperature	-40°C ~ 85°C
