TK39N60W5,S1VF

TK39N60W5,S1VF

Part NumberTK39N60W5,S1VF

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 600V 38.8A T0247

DatasheetTK39N60W5

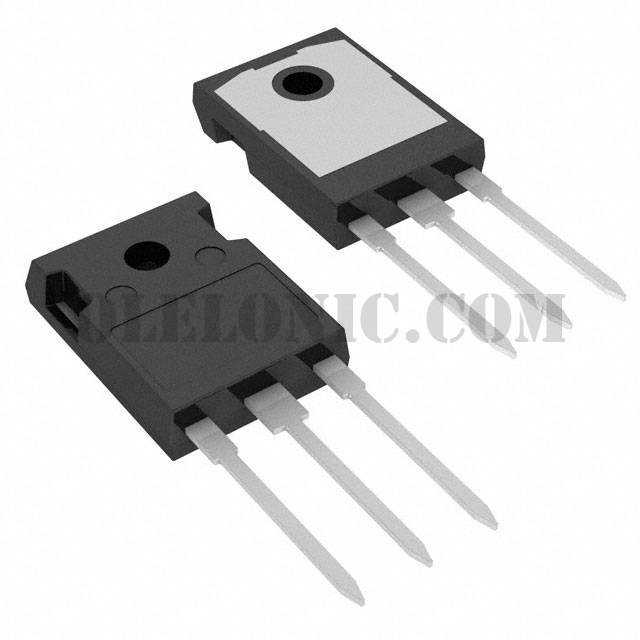

Package / CaseTO-247-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 38.8A (Ta) 270W (Tc) Through Hole TO-247

To learn about the specification of TK39N60W5,S1VF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TK39N60W5,S1VF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TK39N60W5,S1VF.
We are offering TK39N60W5,S1VF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TK39N60W5,S1VF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TK39N60W5
Standard Package	30
Manufacturer	Toshiba Semiconductor and Storage
Series	DTMOSIV
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	38.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	74mOhm @ 19.4A, 10V
Vgs(th) (Max) @ Id	4.5V @ 1.9mA
Gate Charge (Qg) (Max) @ Vgs	135nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	4100pF @ 300V
FET Feature	-
Power Dissipation (Max)	270W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247
Package / Case	TO-247-3
