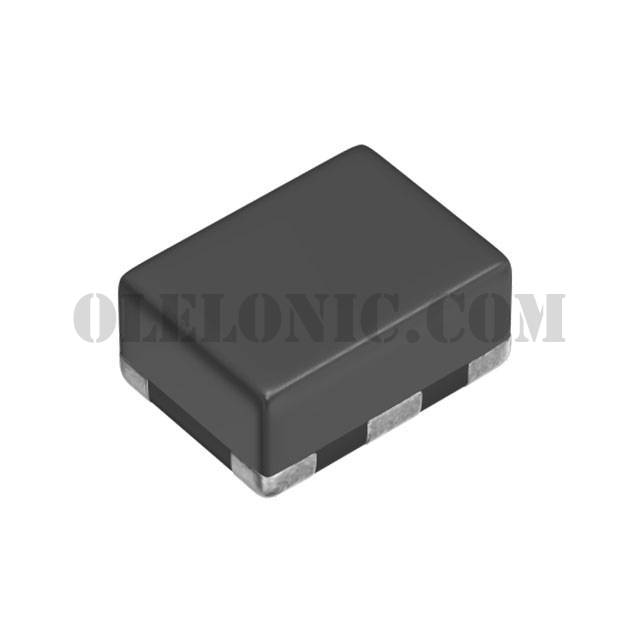

TCM0906C-400-3P-T200


TCM0906C-400-3P-T200

Part NumberTCM0906C-400-3P-T200

Manufacturer

Description

Datasheet

Package / Case0302 (0806 Metric), 6 Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

TCM0906C-400-3P-T200 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package1
ManufacturerTDK Corporation
SeriesTCM-C
PackagingCut Tape (CT)
Part StatusActive
Filter TypeSignal Line
Number of Lines3
Impedance @ Frequency40 Ohms @ 100MHz
Current Rating (Max)100mA
DC Resistance (DCR) (Max)3Ohm
Voltage Rating - DC5V
Voltage Rating - AC-
Operating Temperature-25°C ~ 85°C
Ratings-
Approvals-
Features-
Mounting TypeSurface Mount
Size / Dimension0.034" L x 0.026" W (0.86mm x 0.66mm)
Height (Max)0.018" (0.45mm)
Package / Case0302 (0806 Metric), 6 Lead
