Categories	Crystals, Oscillators, Resonators / Oscillators
Datasheet	TB, TVB Series Datasheet
Standard Package	250
Manufacturer	Connor-Winfield
Series	TB
Packaging	Tape & Reel (TR)
Part Status	Active
Base Resonator	Crystal
Type	TCXO
Frequency	80MHz
Function	Enable/Disable
Output	LVCMOS
Voltage - Supply	3.3V
Frequency Stability	±1ppm
Absolute Pull Range (APR)	-
Operating Temperature	0°C ~ 70°C
Current - Supply (Max)	12mA
Ratings	-
Mounting Type	Surface Mount
Package / Case	10-SMD, No Lead
Size / Dimension	0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)	0.079" (2.00mm)
Current - Supply (Disable) (Max)	-

TB514-050.0M	Connor-Winfield, 50MHz VCTCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead, TB	View
TB612-100.0M	Connor-Winfield, 100MHz TCXO LVCMOS Oscillator 3.3V Enable/Disable 6-SMD, No Lead, TB	View
TB622-049.152M	Connor-Winfield, 49.152MHz TCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead, TB	View
TB622-098.304M	Connor-Winfield, 98.304MHz TCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead, TB	View
TB612-060.0M	Connor-Winfield, 60MHz TCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead, TB	View
TB514-052.0M	Connor-Winfield, 52MHz VCTCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead, TB	View
TB512-050.0M	Connor-Winfield, 50MHz TCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead, TB	View
TB622-049.152M	Connor-Winfield, 49.152MHz TCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead, TB	View
TB622-100.0M	Connor-Winfield, 100MHz TCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead, TB	View
TB524-100.0M	Connor-Winfield, 100MHz VCTCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead, TB	View
TB522-100.0M	Connor-Winfield, 100MHz TCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead, TB	View
TB512-050.0M	Connor-Winfield, 50MHz TCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead, TB	View

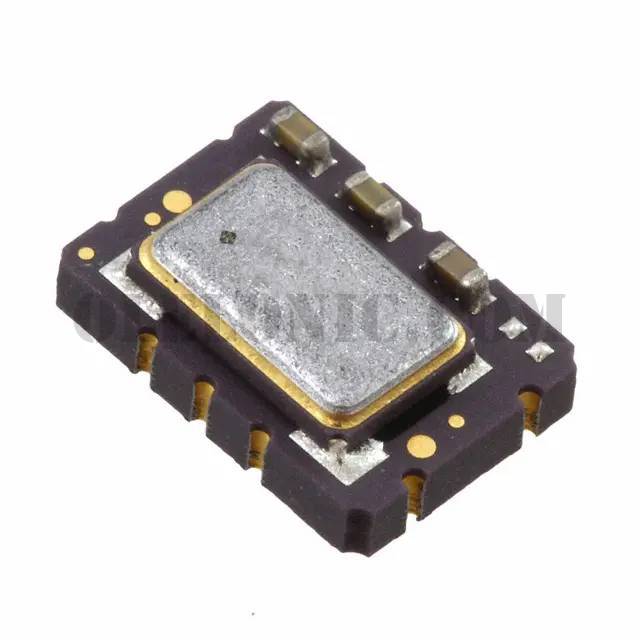

TB522-080.0M

Part NumberTB522-080.0M
