STP80NF55-06FP

STP80NF55-06FP

Part NumberSTP80NF55-06FP

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 55V 60A TO-220FP

DatasheetST(B,P)80NF55-06(-1,FP)

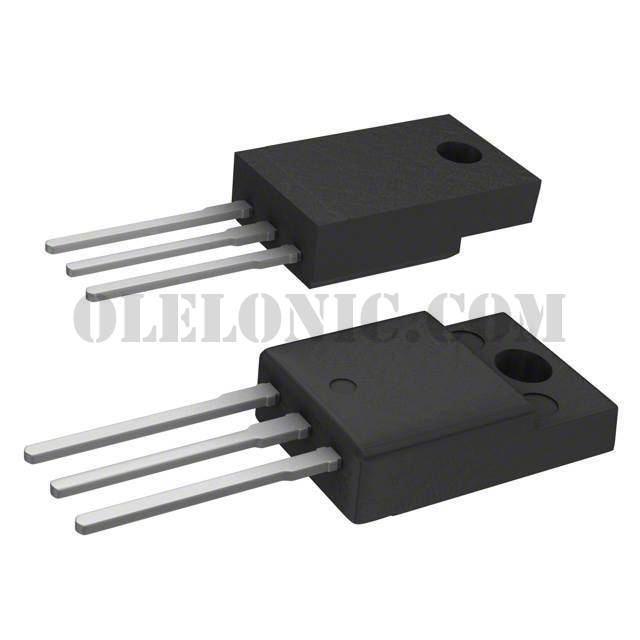

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 55V 60A (Tc) 45W (Tc) Through Hole TO-220FP

To learn about the specification of STP80NF55-06FP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STP80NF55-06FP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STP80NF55-06FP.
We are offering STP80NF55-06FP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STP80NF55-06FP - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	ST(B,P)80NF55-06(-1,FP)
Standard Package	50
Manufacturer	STMicroelectronics
Series	STripFET™ II
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55V
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	6.5mOhm @ 40A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	189nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4400pF @ 25V
FET Feature	-
Power Dissipation (Max)	45W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220FP
Package / Case	TO-220-3 Full Pack
