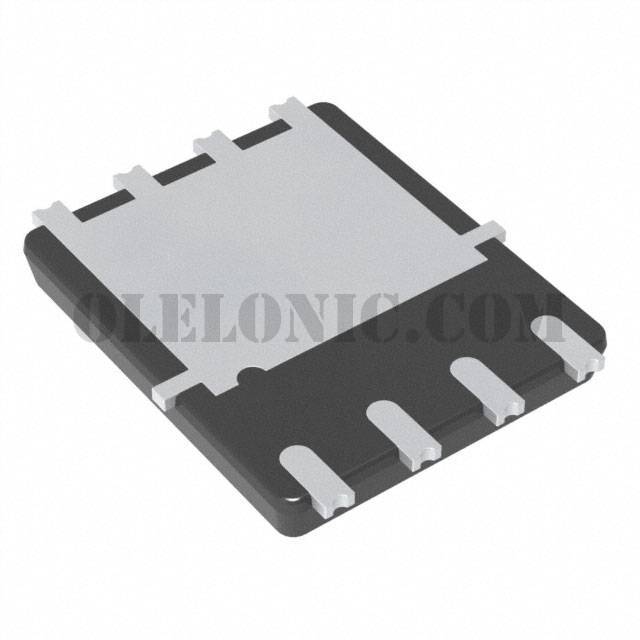

STLD200N4F6AG

STLD200N4F6AG

Part NumberSTLD200N4F6AG

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 40V 120A POWERFLAT

DatasheetSTLD200N4F6AG

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 120A (Tc) 158W (Tc) Surface Mount PowerFlat™ (5x6) Dual Side

To learn about the specification of STLD200N4F6AG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STLD200N4F6AG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STLD200N4F6AG.
We are offering STLD200N4F6AG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STLD200N4F6AG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STLD200N4F6AG
Standard Package	1
Manufacturer	STMicroelectronics
Series	STripFET™ F6
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6.5V, 10V
Rds On (Max) @ Id, Vgs	1.5mOhm @ 75A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	172nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	10700pF @ 10V
FET Feature	-
Power Dissipation (Max)	158W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (5x6) Dual Side
Package / Case	8-PowerWDFN
