STL7N6F7

STL7N6F7

Part NumberSTL7N6F7

ManufacturerSTMicroelectronics

DescriptionN-CHANNEL 60 V, 0.019 OHM TYP.,

DatasheetSTL7N6F7 Datasheet

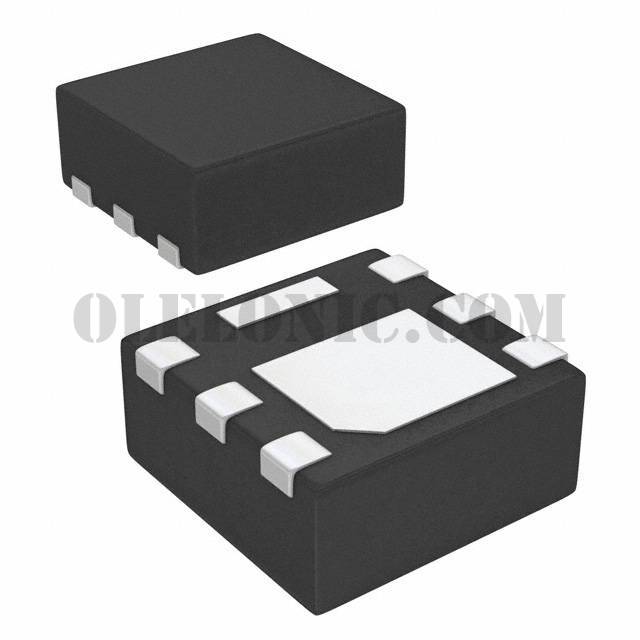

Package / Case6-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 7A (Tc) 2.4W (Ta) Surface Mount PowerFlat™ (2x2)

To learn about the specification of STL7N6F7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STL7N6F7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STL7N6F7.
We are offering STL7N6F7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STL7N6F7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STL7N6F7 Datasheet
Standard Package	1
Manufacturer	STMicroelectronics
Series	STripFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	25mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	450pF @ 25V
FET Feature	-
Power Dissipation (Max)	2.4W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (2x2)
Package / Case	6-PowerWDFN
