STL7LN80K5

STL7LN80K5

Part NumberSTL7LN80K5

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 800V 5A POWERFLAT

DatasheetSTL7LN80K5 Datasheet

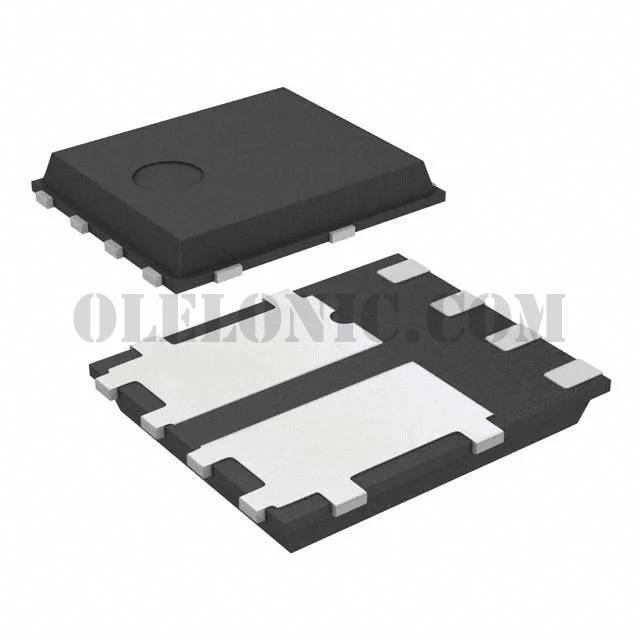

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 800V 5A (Tc) 42W (Tc) Surface Mount PowerFlat™ (5x6)

To learn about the specification of STL7LN80K5, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STL7LN80K5 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STL7LN80K5.
We are offering STL7LN80K5 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STL7LN80K5 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STL7LN80K5 Datasheet
Standard Package	3000
Manufacturer	STMicroelectronics
Series	MDmesh™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800V
Current - Continuous Drain (Id) @ 25°C	5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.15Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id	5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	12nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	270pF @ 100V
FET Feature	-
Power Dissipation (Max)	42W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (5x6)
Package / Case	8-PowerVDFN
