CSD18511KTTT
CSD18511KTTT

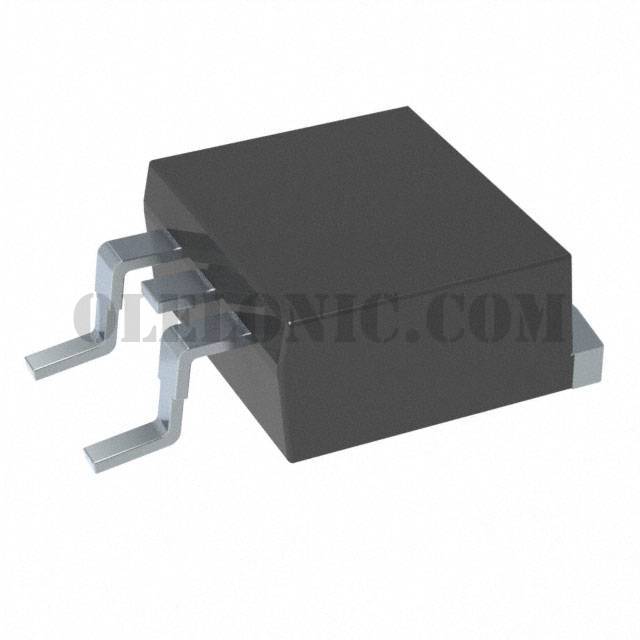

Part Number CSD18511KTTT Description 40-V N-CHANNEL NEXFET POWER MOS Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263ABUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description N-Channel 40V 110A (Ta), 194A (Tc) 188W (Ta) Surface Mount DDPAK/TO-263-3
To learn about the specification of CSD18511KTTT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD18511KTTT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD18511KTTT.
We are offering CSD18511KTTT for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CSD18511KTTT - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet CSD18511KTT Datasheet Standard Package 1 Manufacturer Texas Instruments Series NexFET™ Packaging Cut Tape (CT) Part Status Active FET Type N-Channel Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 40V Current - Continuous Drain (Id) @ 25°C 110A (Ta), 194A (Tc) Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V Rds On (Max) @ Id, Vgs 2.6mOhm @ 100A, 10V Vgs(th) (Max) @ Id 2.4V @ 250µA Gate Charge (Qg) (Max) @ Vgs 64nC @ 10V Vgs (Max) ±20V Input Capacitance (Ciss) (Max) @ Vds 5940pF @ 20V FET Feature - Power Dissipation (Max) 188W (Ta) Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Surface Mount Supplier Device Package DDPAK/TO-263-3 Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
