FDFMA2P029Z

FDFMA2P029Z

Part NumberFDFMA2P029Z

ManufacturerON Semiconductor

DescriptionMOSFET P-CH 20V 3.1A 2X2MLP

DatasheetFDFMA2P029Z

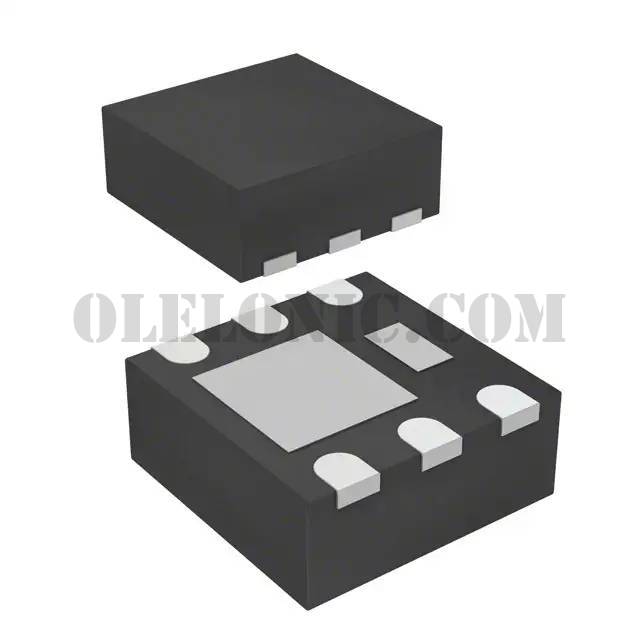

Package / Case6-VDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 3.1A (Ta) 1.4W (Tj) Surface Mount 6-MicroFET (2x2)

To learn about the specification of FDFMA2P029Z, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDFMA2P029Z with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDFMA2P029Z.
We are offering FDFMA2P029Z for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDFMA2P029Z - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDFMA2P029Z
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	95mOhm @ 3.1A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10nC @ 4.5V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	720pF @ 10V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	1.4W (Tj)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-MicroFET (2x2)
Package / Case	6-VDFN Exposed Pad
