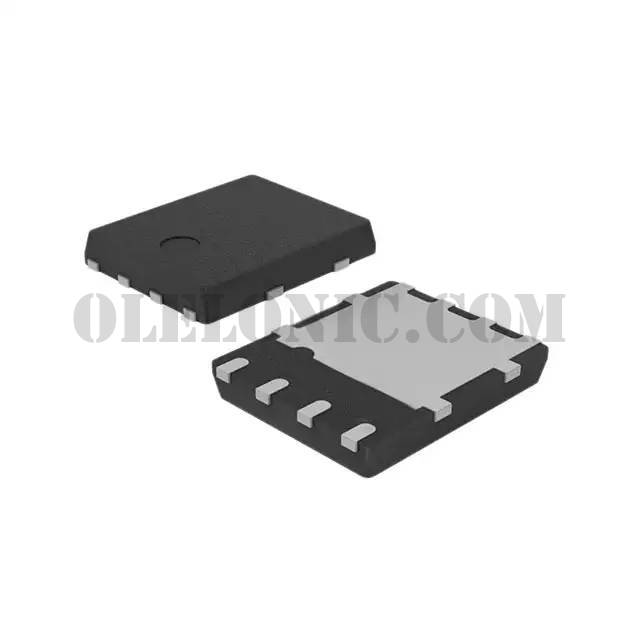

STL260N3LLH6

STL260N3LLH6

Part NumberSTL260N3LLH6

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 30V 260A POWERFLAT

DatasheetSTL260N3LLH6

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 260A (Tc) 166W (Tc) Surface Mount PowerFlat™ (5x6)

To learn about the specification of STL260N3LLH6, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STL260N3LLH6 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STL260N3LLH6.
We are offering STL260N3LLH6 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STL260N3LLH6 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STL260N3LLH6
Standard Package	1
Manufacturer	STMicroelectronics
Series	STripFET™ H6
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	260A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1.3mOhm @ 22.5A, 10V
Vgs(th) (Max) @ Id	1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs	61.5nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6375pF @ 25V
FET Feature	-
Power Dissipation (Max)	166W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (5x6)
Package / Case	8-PowerVDFN
