STL11N6F7

STL11N6F7

Part NumberSTL11N6F7

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 60V 11A POWERFLAT

DatasheetSTL11N6F7 Datasheet

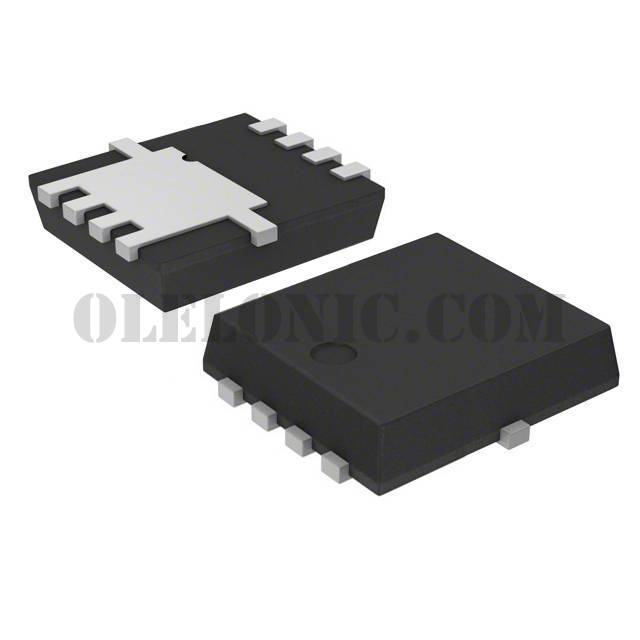

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 11A (Ta) 2.9W (Ta), 48W (Tc) Surface Mount PowerFlat™ (3.3x3.3)

To learn about the specification of STL11N6F7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STL11N6F7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STL11N6F7.
We are offering STL11N6F7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STL11N6F7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STL11N6F7 Datasheet
Standard Package	3000
Manufacturer	STMicroelectronics
Series	STripFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	11A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	12mOhm @ 5.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	17nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1035pF @ 30V
FET Feature	-
Power Dissipation (Max)	2.9W (Ta), 48W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (3.3x3.3)
Package / Case	8-PowerVDFN
