Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single

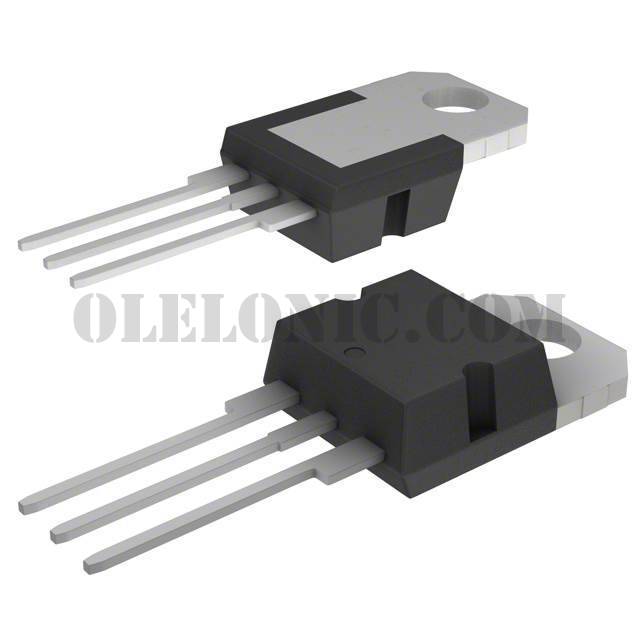

Datasheet	STGx10H60DF
Standard Package	50
Manufacturer	STMicroelectronics
Series	-
Packaging	Tube
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	20A
Current - Collector Pulsed (Icm)	40A
Vce(on) (Max) @ Vge, Ic	1.95V @ 15V, 10A
Power - Max	115W
Switching Energy	83µJ (on), 140µJ (off)
Input Type	Standard
Gate Charge	57nC
Td (on/off) @ 25°C	19.5ns/103ns
Test Condition	400V, 10A, 10Ohm, 15V
Reverse Recovery Time (trr)	107ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220
