STGB14NC60KDT4
STGB14NC60KDT4
Part Number STGB14NC60KDT4

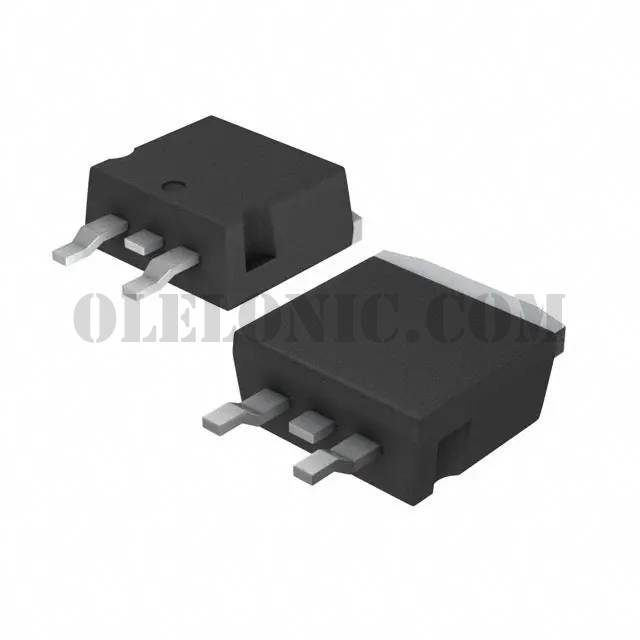

Description IGBT 600V 25A 80W D2PAK
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT 600V 25A 80W Surface Mount D2PAK
To learn about the specification of STGB14NC60KDT4, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STGB14NC60KDT4 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STGB14NC60KDT4.
We are offering STGB14NC60KDT4 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
STGB14NC60KDT4 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet STGx14NC60KD
Standard Package 1000
Manufacturer STMicroelectronics
Series PowerMESH™
Packaging Tape & Reel (TR)
Part Status Active
IGBT Type -
Voltage - Collector Emitter Breakdown (Max) 600V
Current - Collector (Ic) (Max) 25A
Current - Collector Pulsed (Icm) 50A
Vce(on) (Max) @ Vge, Ic 2.5V @ 15V, 7A
Power - Max 80W
Switching Energy 82µJ (on), 155µJ (off)
Input Type Standard
Gate Charge 34.4nC
Td (on/off) @ 25°C 22.5ns/116ns
Test Condition 390V, 7A, 10Ohm, 15V
Reverse Recovery Time (trr) 37ns
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package D2PAK
Base Part Number STG*14NC
