SSM6J214FE(TE85L,F

SSM6J214FE(TE85L,F

Part NumberSSM6J214FE(TE85L,F

ManufacturerToshiba Semiconductor and Storage

DescriptionX34 SMALL LOW ON RESISTANCE PCH

DatasheetSSM6J214FE

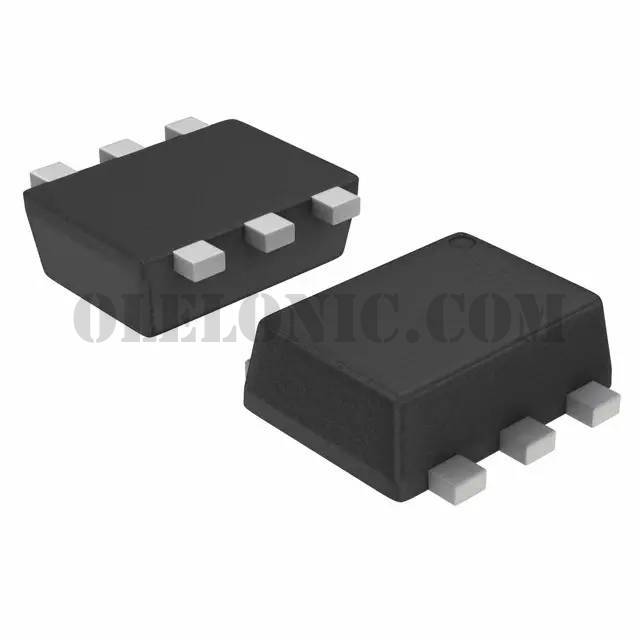

Package / CaseSOT-563, SOT-666

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 30V 3.6A (Ta) 500mW (Ta) Surface Mount ES6

To learn about the specification of SSM6J214FE(TE85L,F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM6J214FE(TE85L,F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM6J214FE(TE85L,F.
We are offering SSM6J214FE(TE85L,F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM6J214FE(TE85L,F - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SSM6J214FE
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSVI
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	3.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 10V
Rds On (Max) @ Id, Vgs	50mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	1.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	7.9nC @ 4.5V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	560pF @ 15V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	ES6
Package / Case	SOT-563, SOT-666
