SSM6H19NU,LF

SSM6H19NU,LF

Part NumberSSM6H19NU,LF

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 40V 2A 6UDFN

DatasheetSSM6H19NU

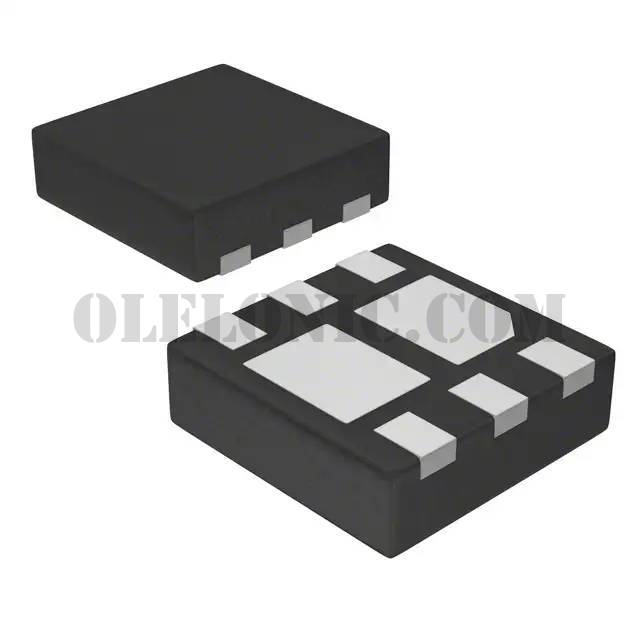

Package / Case6-UDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 2A (Ta) 1W (Ta) Surface Mount 6-UDFN (2x2)

To learn about the specification of SSM6H19NU,LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM6H19NU,LF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM6H19NU,LF.
We are offering SSM6H19NU,LF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM6H19NU,LF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SSM6H19NU
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSVII-H
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 8V
Rds On (Max) @ Id, Vgs	185mOhm @ 1A, 8V
Vgs(th) (Max) @ Id	1.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	2.2nC @ 4.2V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	130pF @ 10V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-UDFN (2x2)
Package / Case	6-UDFN Exposed Pad
