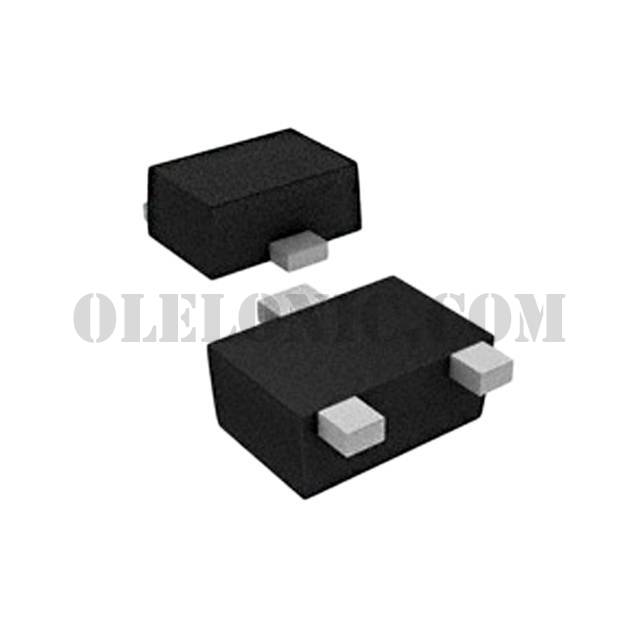

SSM3K56MFV,L3F

SSM3K56MFV,L3F

Part NumberSSM3K56MFV,L3F

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 20V 0.8A VESM

DatasheetSSM3K56MFV

Package / CaseSOT-723

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 800mA (Ta) 150mW (Ta) Surface Mount VESM

To learn about the specification of SSM3K56MFV,L3F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM3K56MFV,L3F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM3K56MFV,L3F.
We are offering SSM3K56MFV,L3F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM3K56MFV,L3F - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SSM3K56MFV
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSVII-H
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	800mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	235mOhm @ 800mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	1nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	55pF @ 10V
FET Feature	-
Power Dissipation (Max)	150mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	VESM
Package / Case	SOT-723
