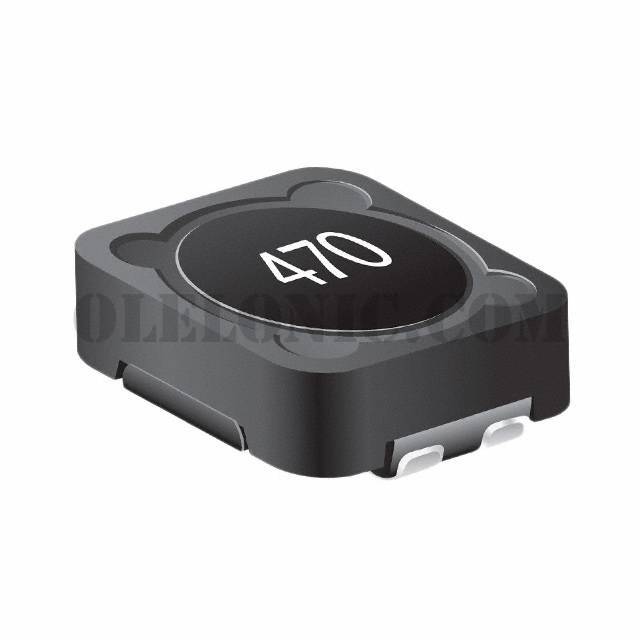

SRF0703A-470M

Part NumberSRF0703A-470M

ManufacturerBourns Inc.

DescriptionINDUCT ARRAY 2 COIL 47UH SMD

DatasheetSRF0703A Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 194.2µH Inductance - Connected in Series 47µH Inductance - Connected in Parallel 338mOhm Max DC Resistance (DCR) - Parallel 1.08A Nonstandard

To learn about the specification of SRF0703A-470M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SRF0703A-470M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SRF0703A-470M.
We are offering SRF0703A-470M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SRF0703A-470M - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	SRF0703A Series
Standard Package	1500
Manufacturer	Bourns Inc.
Series	SRF0703A
Packaging	Tape & Reel (TR)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	47µH
Inductance - Connected In Series	194.2µH
Tolerance	±20%
Current Rating - Parallel	1.08A
Current Rating - Series	542mA
Current Saturation - Parallel	1.14A
Current Saturation - Series	570mA
DC Resistance (DCR) - Parallel	338mOhm Max
DC Resistance (DCR) - Series	1.28Ohm Max
Shielding	Shielded
Ratings	AEC-Q200
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.299" L x 0.299" W (7.60mm x 7.60mm)
Height	0.142" (3.60mm)
Base Part Number	SRF0703A
