Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SMD15PL Thru SMD1200PL
Standard Package	2500
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	850mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	500µA @ 100V
Capacitance @ Vr, F	30pF @ 4V, 1MHz
Mounting Type	Surface Mount

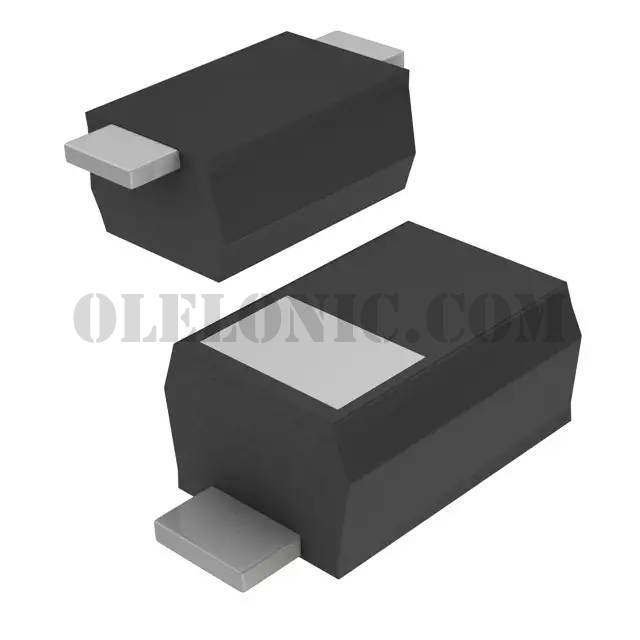

Package / Case	SOD-123F
Supplier Device Package	SOD-123FL
Operating Temperature - Junction	-55°C ~ 125°C
Base Part Number	SMD110
