BAT41KFILM

BAT41KFILM

Part NumberBAT41KFILM

ManufacturerSTMicroelectronics

DescriptionDIODE SCHOTTKY 100V 200MA SOD523

DatasheetBAT41

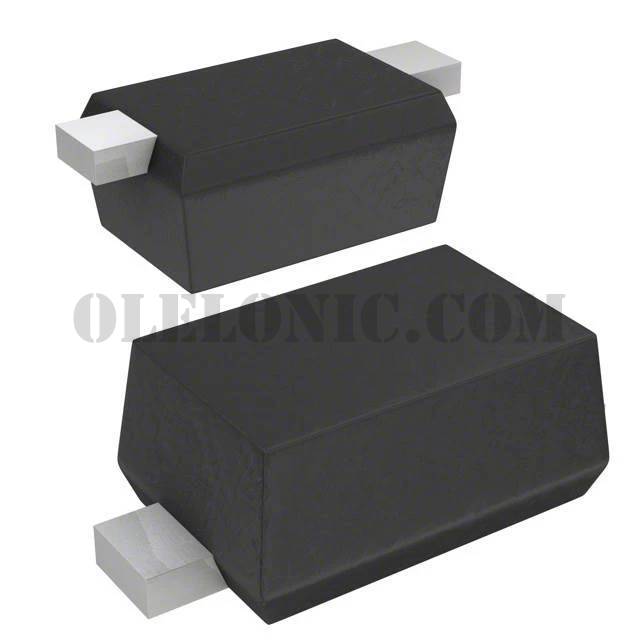

Package / CaseSC-79, SOD-523

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 100V 200mA (DC) Surface Mount SOD-523

To learn about the specification of BAT41KFILM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAT41KFILM with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAT41KFILM.
We are offering BAT41KFILM for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAT41KFILM - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAT41
Standard Package	3000
Manufacturer	STMicroelectronics
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	200mA (DC)
Voltage - Forward (Vf) (Max) @ If	1V @ 200mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	100nA @ 50V
Capacitance @ Vr, F	10pF @ 1V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
Operating Temperature - Junction	150°C (Max)
Base Part Number	BAT41K
