SIZ902DT-T1-GE3

SIZ902DT-T1-GE3

Part NumberSIZ902DT-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET 2N-CH 30V 16A POWERPAIR

DatasheetSiZ902DT

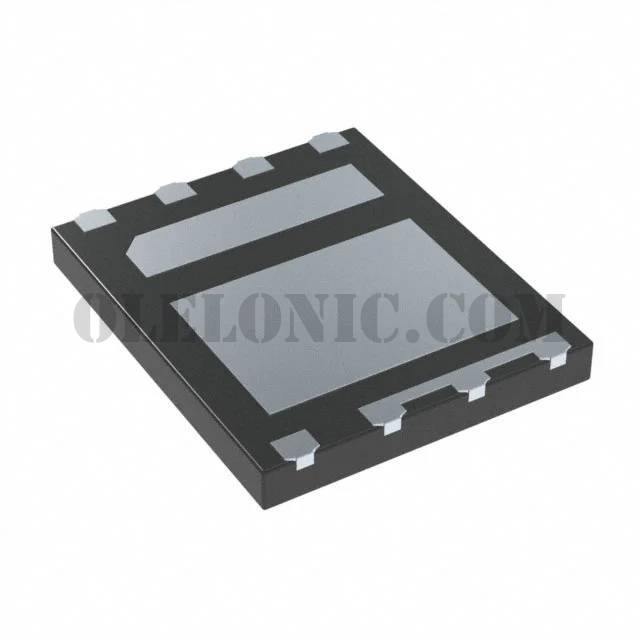

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 30V 16A 29W, 66W Surface Mount 8-PowerPair® (6x5)

To learn about the specification of SIZ902DT-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SIZ902DT-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SIZ902DT-T1-GE3.
We are offering SIZ902DT-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SIZ902DT-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	SiZ902DT
Standard Package	3000
Manufacturer	Vishay Siliconix
Series	TrenchFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	16A
Rds On (Max) @ Id, Vgs	12mOhm @ 13.8A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	21nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	790pF @ 15V
Power - Max	29W, 66W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-PowerPair® (6x5)
Base Part Number	SIZ902
