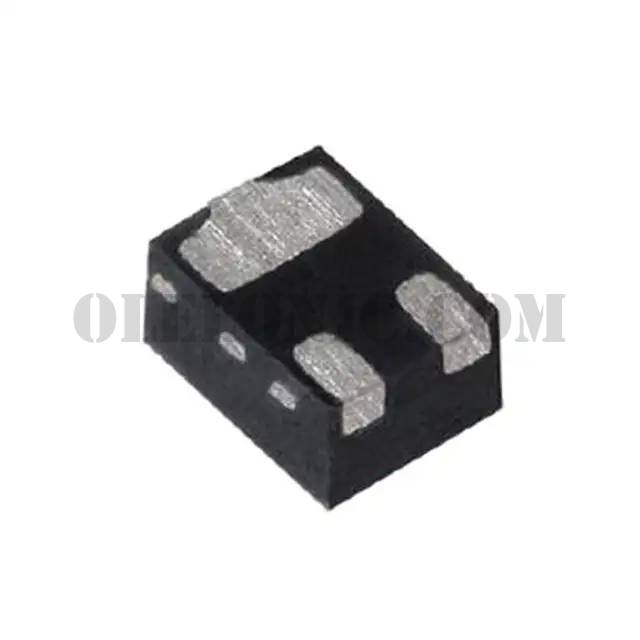

SIUD412ED-T1-GE3

SIUD412ED-T1-GE3

Part NumberSIUD412ED-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 12V 500MA PWRPAK0806

DatasheetSIUD412ED

Package / CasePowerPAK® 0806

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 12V 500mA (Tc) 1.25W (Ta) Surface Mount PowerPAK® 0806

To learn about the specification of SIUD412ED-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SIUD412ED-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SIUD412ED-T1-GE3.
We are offering SIUD412ED-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SIUD412ED-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SIUD412ED
Standard Package	3000
Manufacturer	Vishay Siliconix
Series	TrenchFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	500mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.2V, 4.5V
Rds On (Max) @ Id, Vgs	340mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.71nC @ 4.5V
Vgs (Max)	±5V
Input Capacitance (Ciss) (Max) @ Vds	21pF @ 6V
FET Feature	-
Power Dissipation (Max)	1.25W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® 0806
Package / Case	PowerPAK® 0806
