Categories	Crystals, Oscillators, Resonators / Oscillators
Datasheet	SiT9156A
Standard Package	250
Manufacturer	SiTIME
Series	SiT9156
Packaging	Tape & Reel (TR)
Part Status	Active
Base Resonator	MEMS
Type	XO (Standard)
Frequency	156.25MHz
Function	Enable/Disable
Output	LVPECL
Voltage - Supply	3.3V
Frequency Stability	±50ppm
Absolute Pull Range (APR)	-
Operating Temperature	-20°C ~ 70°C
Spread Spectrum Bandwidth	-
Current - Supply (Max)	69mA
Ratings	-
Mounting Type	Surface Mount

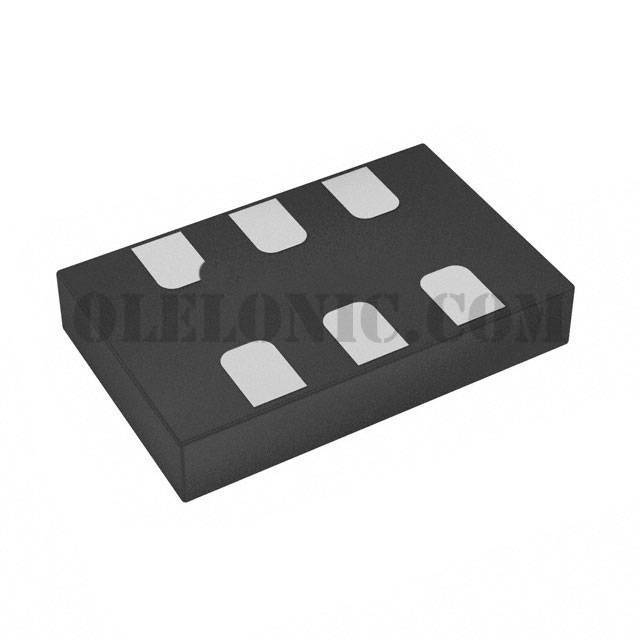

Package / Case	6-SMD, No Lead
Size / Dimension	0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max)	0.031" (0.80mm)
Current - Supply (Disable) (Max)	35mA

SIT9156AI-1B2-33E156.253906E	SiTIME, 156.2539MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead, SiT9156	View
SIT9156AI-1B2-33E156.253906E	SiTIME, 156.2539MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead, SiT9156	View
SIT9156AC-1C3-33E156.250000X	SiTIME, 156.25MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead, SiT9156	View
SIT9156AC-1C3-33E156.250000X	SiTIME, 156.25MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead, SiT9156	View

SIT9156AC-1C3-33E156.250000X

Part NumberSIT9156AC-1C3-33E156.250000X
