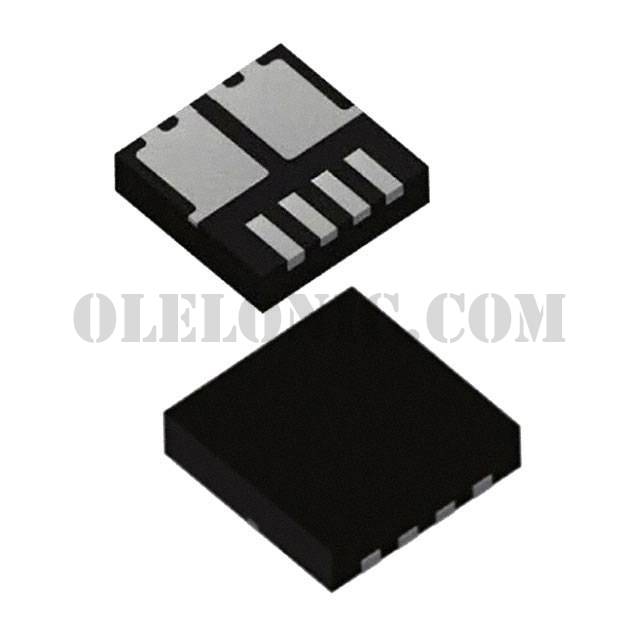

SISF20DN-T1-GE3

Part NumberSISF20DN-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET DL N-CH 60V PPK 1212-8SCD

DatasheetSISF20DN

Package / CasePowerPAK® 1212-8SCD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 60V 14A (Ta), 52A (Tc) 5.2W (Ta), 69.4W (Tc) Surface Mount PowerPAK® 1212-8SCD

To learn about the specification of SISF20DN-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SISF20DN-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SISF20DN-T1-GE3.
We are offering SISF20DN-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SISF20DN-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	SISF20DN
Standard Package	3000
Manufacturer	Vishay Siliconix
Series	TrenchFET® Gen IV
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	14A (Ta), 52A (Tc)
Rds On (Max) @ Id, Vgs	13mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	33nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1290pF @ 30V
Power - Max	5.2W (Ta), 69.4W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® 1212-8SCD
Supplier Device Package	PowerPAK® 1212-8SCD
