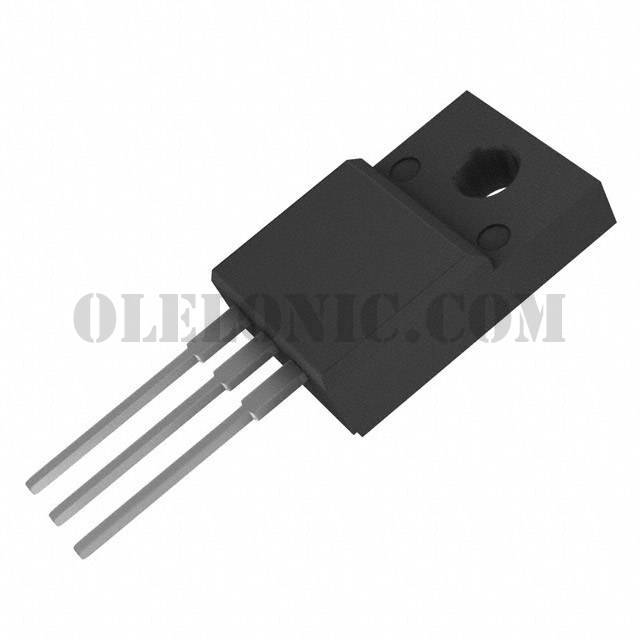

SIHF12N50C-E3

SIHF12N50C-E3

Part NumberSIHF12N50C-E3

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 500V 12A TO-220

DatasheetSIH(P,B,F)12N50C-E3

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 500V 12A (Tc) 36W (Tc) Through Hole TO-220 Full Pack

To learn about the specification of SIHF12N50C-E3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SIHF12N50C-E3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SIHF12N50C-E3.
We are offering SIHF12N50C-E3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SIHF12N50C-E3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SIH(P,B,F)12N50C-E3
Standard Package	50
Manufacturer	Vishay Siliconix
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	12A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	555mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	48nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1375pF @ 25V
FET Feature	-
Power Dissipation (Max)	36W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220 Full Pack
Package / Case	TO-220-3 Full Pack
