SIA811ADJ-T1-GE3

SIA811ADJ-T1-GE3

Part NumberSIA811ADJ-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET P-CH 20V 4.5A PPAK SC70-6

DatasheetSIA811ADJ

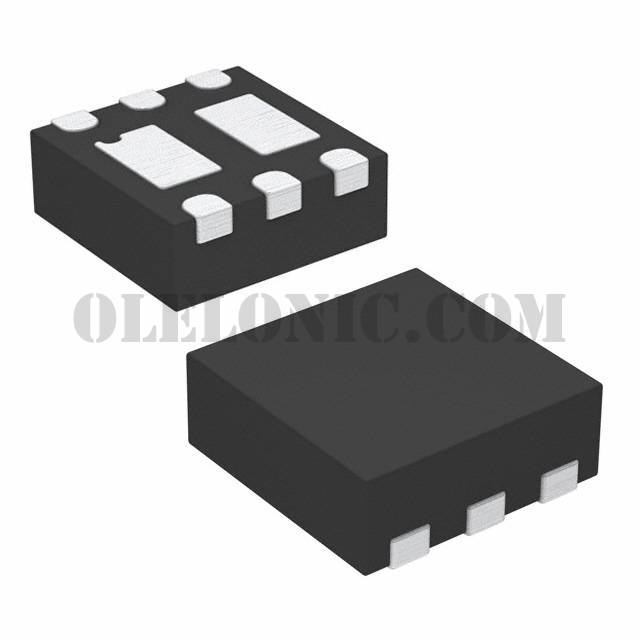

Package / CasePowerPAK® SC-70-6 Dual

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 4.5A (Tc) 1.8W (Ta), 6.5W (Tc) Surface Mount PowerPAK® SC-70-6 Dual

To learn about the specification of SIA811ADJ-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SIA811ADJ-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SIA811ADJ-T1-GE3.
We are offering SIA811ADJ-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SIA811ADJ-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SIA811ADJ
Standard Package	3000
Manufacturer	Vishay Siliconix
Series	LITTLE FOOT®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	4.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	116mOhm @ 2.8A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13nC @ 8V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	345pF @ 10V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	1.8W (Ta), 6.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SC-70-6 Dual
Package / Case	PowerPAK® SC-70-6 Dual
