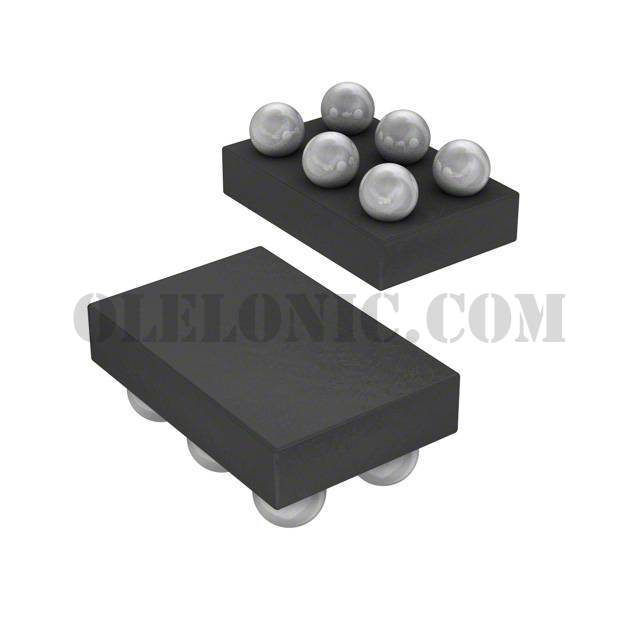

SI8499DB-T2-E1

SI8499DB-T2-E1

Part NumberSI8499DB-T2-E1

ManufacturerVishay Siliconix

DescriptionMOSFET P-CH 20V 16A MICROFOOT

DatasheetSI8499DB

Package / Case6-UFBGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 16A (Tc) 2.77W (Ta), 13W (Tc) Surface Mount 6-Micro Foot™ (1.5x1)

To learn about the specification of SI8499DB-T2-E1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SI8499DB-T2-E1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SI8499DB-T2-E1.
We are offering SI8499DB-T2-E1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SI8499DB-T2-E1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SI8499DB
Standard Package	1
Manufacturer	Vishay Siliconix
Series	TrenchFET®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	16A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	32mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id	1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	30nC @ 5V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	1300pF @ 10V
FET Feature	-
Power Dissipation (Max)	2.77W (Ta), 13W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-Micro Foot™ (1.5x1)
Package / Case	6-UFBGA
