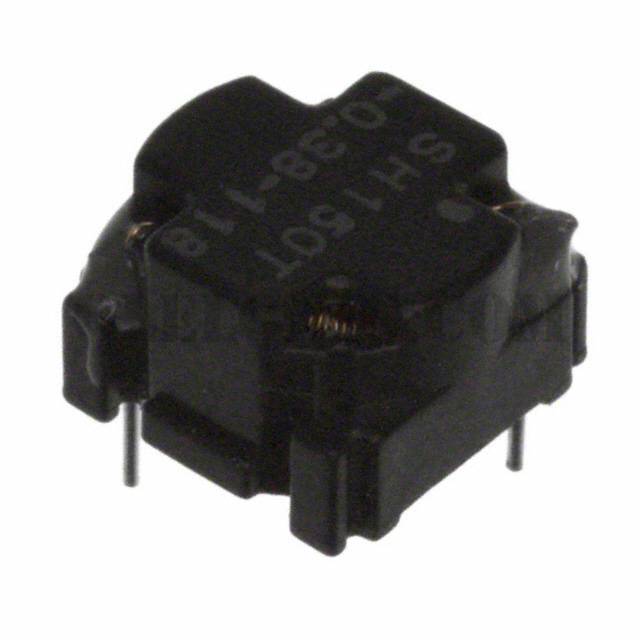

SH150T-0.38-118

SH150T-0.38-118

Part NumberSH150T-0.38-118

ManufacturerAmgis, LLC

DescriptionFIXED IND 118UH 380MA 1.2 OHM TH

DatasheetSH150 Series

Package / CaseRadial, Horizontal - Corner Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description118µH Unshielded Toroidal Inductor 380mA 1.2Ohm Radial, Horizontal - Corner Terminals

To learn about the specification of SH150T-0.38-118, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SH150T-0.38-118 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SH150T-0.38-118.
We are offering SH150T-0.38-118 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SH150T-0.38-118 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	SH150 Series
Standard Package	200
Manufacturer	Amgis, LLC
Series	SH150
Packaging	Tray
Part Status	Active
Type	Toroidal
Material - Core	Iron Powder
Inductance	118µH
Tolerance	±20%
Current Rating (Amps)	380mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	1.2Ohm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	10kHz
Mounting Type	Through Hole
Package / Case	Radial, Horizontal - Corner Terminals
Supplier Device Package	-
Size / Dimension	0.433" L x 0.441" W (11.00mm x 11.20mm)
Height - Seated (Max)	0.280" (7.10mm)
