SDT40A120CTE

Part NumberSDT40A120CTE

ManufacturerDiodes Incorporated

DescriptionSCHOTTKYRECTIFIERTO262

DatasheetSDT40A120CTE

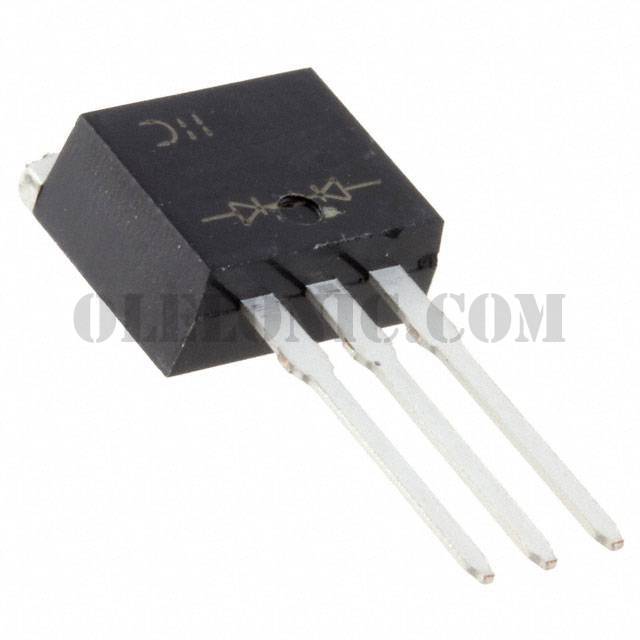

Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 120V 20A Through Hole TO-262-3 Long Leads, I²Pak, TO-262AA

To learn about the specification of SDT40A120CTE, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SDT40A120CTE with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SDT40A120CTE.
We are offering SDT40A120CTE for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SDT40A120CTE - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	SDT40A120CTE
Standard Package	50
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tube
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	120V
Current - Average Rectified (Io) (per Diode)	20A
Voltage - Forward (Vf) (Max) @ If	880mV @ 20A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	120µA @ 120V
Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Through Hole
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package	TO-262
