BAT54SDW-TP

Part NumberBAT54SDW-TP

ManufacturerMicro Commercial Co

DescriptionDIODE ARRAY SCHOTTKY 30V SOT363

DatasheetBAT54TW(ADW, CDW, SDW, BRW) Datasheet

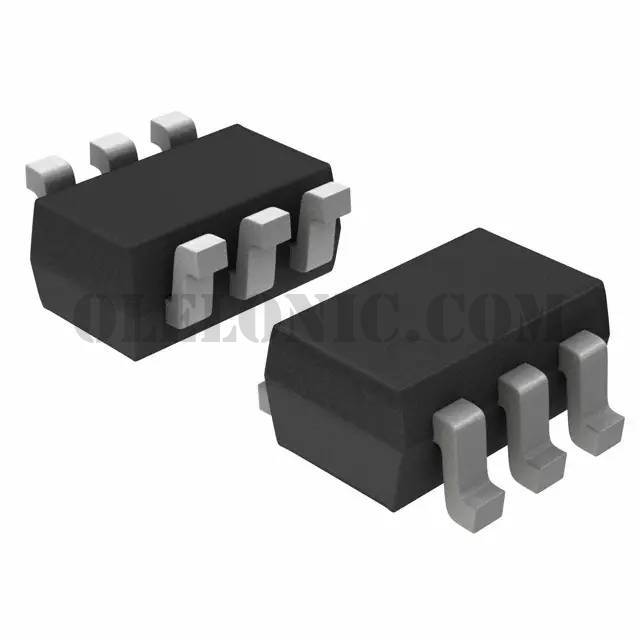

Package / Case6-TSSOP, SC-88, SOT-363

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 2 Pair Series Connection Schottky 30V 200mA (DC) Surface Mount 6-TSSOP, SC-88, SOT-363

To learn about the specification of BAT54SDW-TP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAT54SDW-TP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAT54SDW-TP.
We are offering BAT54SDW-TP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAT54SDW-TP - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	BAT54TW(ADW, CDW, SDW, BRW) Datasheet
Standard Package	3000
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Configuration	2 Pair Series Connection
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io) (per Diode)	200mA (DC)
Voltage - Forward (Vf) (Max) @ If	1V @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	5ns
Current - Reverse Leakage @ Vr	2µA @ 25V
Operating Temperature - Junction	-65°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-TSSOP, SC-88, SOT-363
Supplier Device Package	SOT-363
Base Part Number	BAT54SDW
