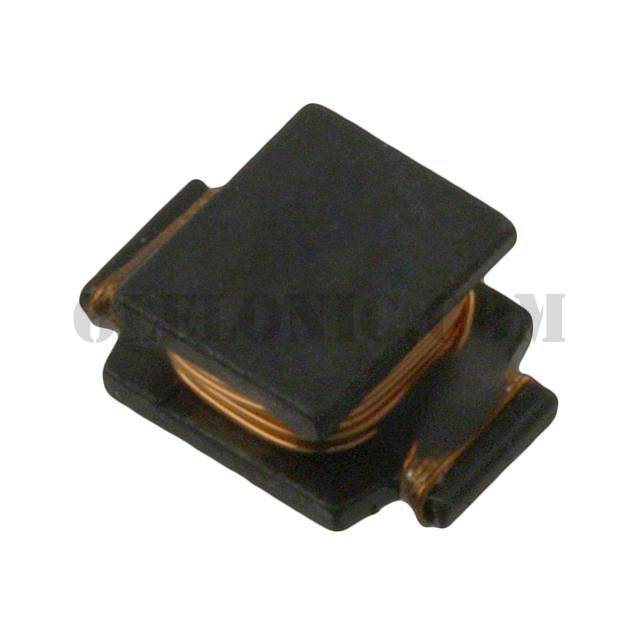

SDR0703-391KL


SDR0703-391KL

Part NumberSDR0703-391KL

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SDR0703-391KL - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package500
ManufacturerBourns Inc.
SeriesSDR0703
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance390µH
Tolerance±10%
Current Rating (Amps)140mA
Current - Saturation180mA
ShieldingUnshielded
DC Resistance (DCR)6.2Ohm Max
Q @ Freq36 @ 796kHz
Frequency - Self Resonant5.5MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.256" L x 0.177" W (6.50mm x 4.50mm)
Height - Seated (Max)0.106" (2.70mm)
Base Part NumberSDR0703
