Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	SDB101-107
Standard Package	1500
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1kV
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Current - Reverse Leakage @ Vr	10µA @ 1000V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	SDB-1
Base Part Number	SDB107

DF04S2	ON Semiconductor, Bridge Rectifier Single Phase Standard 400V Surface Mount 4-SDIP,	View
B6S-G	Comchip Technology, Bridge Rectifier Single Phase Standard 600V Surface Mount MBS,	View
KMB245STR	SMC Diode Solutions, Bridge Rectifier Single Phase Schottky 45V Surface Mount MBS,	View
YBS3004G	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 400V Surface Mount YBS,	View
DF204ST-G	Comchip Technology, Bridge Rectifier Single Phase Standard 400V Surface Mount DFS,	View
DF08S	ON Semiconductor, Bridge Rectifier Single Phase Standard 800V Surface Mount 4-SDIP,	View
DBLS107G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBLS,	View
TBS22J-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 600V Surface Mount 4-TBS,	View
CBR1-D020S TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Standard 200V Surface Mount 4-SMDIP,	View
CDBHM140L-HF	Comchip Technology, Bridge Rectifier Single Phase Schottky 40V Surface Mount MBS,	View
ABS15M REG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1kV Surface Mount ABS,	View
SDB156-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 800V Surface Mount SDB-1,	View

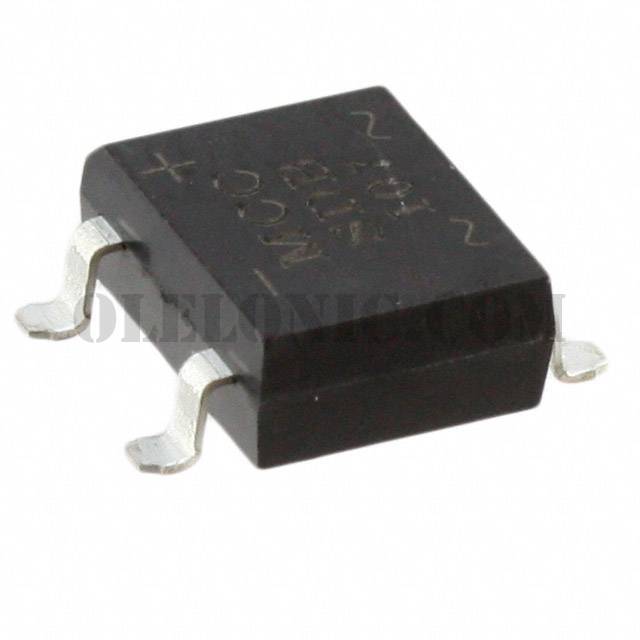

SDB107-TP

Part NumberSDB107-TP
