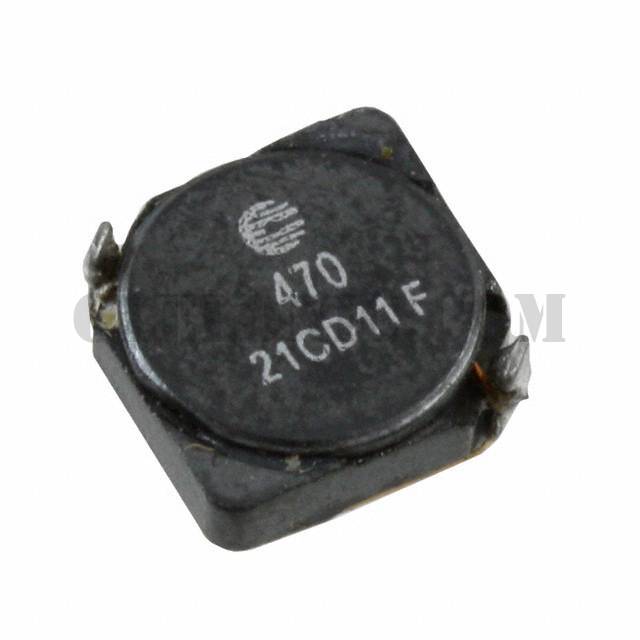

SD6020-470-R

SD6020-470-R

Part NumberSD6020-470-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 47UH 610MA 595 MOHM

DatasheetSD6020 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description47µH Shielded Wirewound Inductor 610mA 595mOhm Max Nonstandard

To learn about the specification of SD6020-470-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SD6020-470-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SD6020-470-R.
We are offering SD6020-470-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SD6020-470-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	SD6020 Series
Standard Package	2600
Manufacturer	Eaton - Electronics Division
Series	SD6020
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	47µH
Tolerance	±30%
Current Rating (Amps)	610mA
Current - Saturation	540mA
Shielding	Shielded
DC Resistance (DCR)	595mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max)	0.079" (2.00mm)
