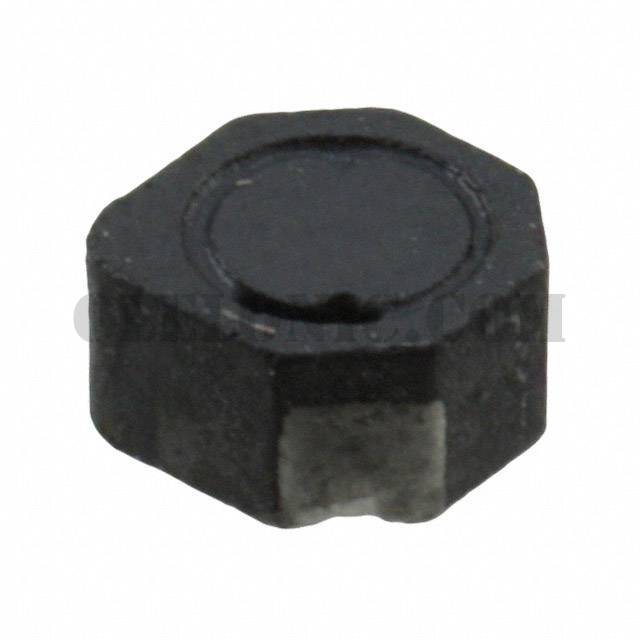

SD3118-2R2-R


SD3118-2R2-R

Part NumberSD3118-2R2-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SD3118-2R2-R - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerEaton - Electronics Division
SeriesSD3118
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance2.2µH
Tolerance±30%
Current Rating (Amps)1.5A
Current - Saturation2A
ShieldingShielded
DC Resistance (DCR)74mOhm
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.122" L x 0.122" W (3.10mm x 3.10mm)
Height - Seated (Max)0.071" (1.80mm)
