Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	SCRH124 Series
Standard Package	500
Manufacturer	Signal Transformer
Series	SCRH124
Packaging	Tape & Reel (TR)
Part Status	Active
Type	-
Material - Core	-
Inductance	33µH
Tolerance	±20%
Current Rating (Amps)	2.43A
Current - Saturation	2.7A
Shielding	Shielded
DC Resistance (DCR)	97mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)	0.177" (4.50mm)

302R29N100KV3E-****-SC	Johanson Dielectrics Inc., 10pF ±10% 250V Ceramic Capacitor C0G, NP0 1808 (4520 Metric), SC	View
SCIHP1367-3R3M	Signal Transformer, 3.3µH Shielded Wirewound Inductor 15A 6.8mOhm Max Nonstandard, SCIHP1367	View
SC01001518	Skyworks Solutions Inc., 10pF Silicon Capacitor Nonstandard, SC	View
SC-30-100	KEMET, 1mH @ 100kHz 2 Line Common Mode Choke Through Hole 30A DCR 6mOhm, SC	View
502R29W102KV3E-****-SC	Johanson Dielectrics Inc., 1000pF ±10% 250V Ceramic Capacitor X7R 1808 (4520 Metric), SC	View
SCIHP0530-1R0	Signal Transformer, 1µH Unshielded Wirewound Inductor 7A Nonstandard, SCIHP0530	View
SC00560912	Skyworks Solutions Inc., 5.6pF Silicon Capacitor 100V Nonstandard Chip, SC	View
SC-20-100	KEMET, 1mH @ 100kHz 2 Line Common Mode Choke Through Hole 20A DCR 8mOhm, SC	View
SCIHP0750-R33	Signal Transformer, 330nH Shielded Wirewound Inductor 21A 3.7mOhm Max Nonstandard, SCIHP0750	View
SCRH127-220	Signal Transformer, 22µH Shielded Inductor 4A 43.2mOhm Max Nonstandard, SCRH127	View
SCRH104R-220	Signal Transformer, 22µH Shielded Inductor 2.7A 73mOhm Max Nonstandard, SCRH104R	View
302R29N330JV3E-****-SC	Johanson Dielectrics Inc., 33pF ±5% 250V Ceramic Capacitor C0G, NP0 1808 (4520 Metric), SC	View

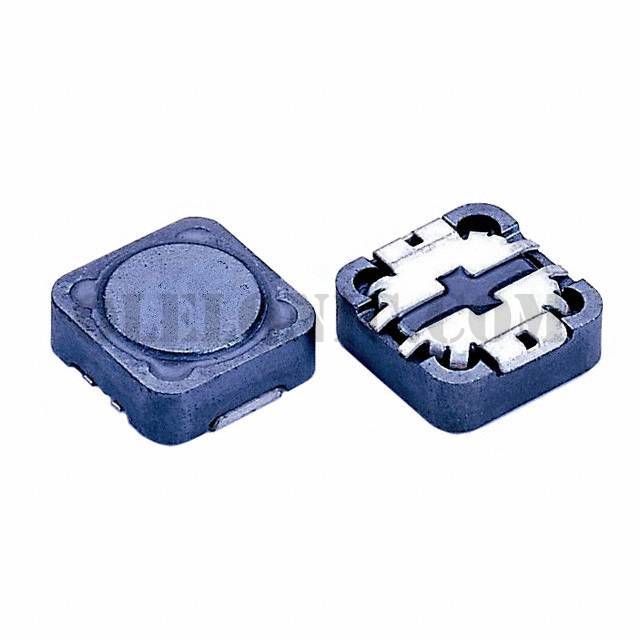

SCRH124-330
