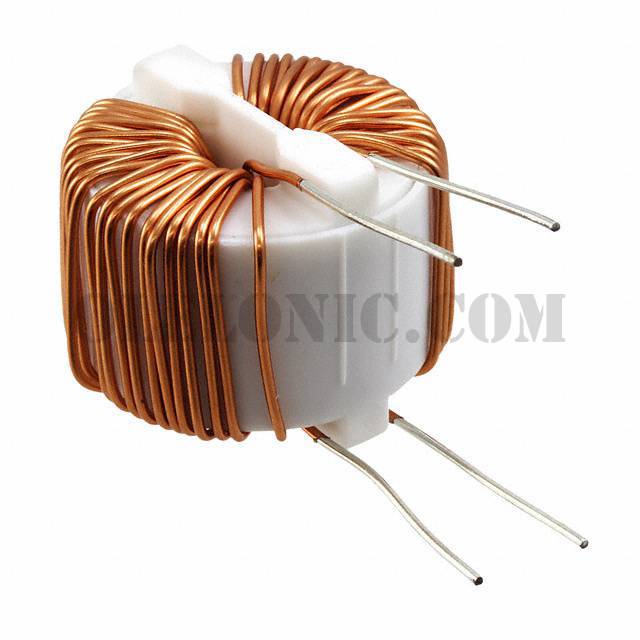

SC-02-200

SC-02-200

Part NumberSC-02-200

ManufacturerKEMET

DescriptionCOMMON MODE CHOKE 2MH 2A 2LN TH

DatasheetSC, Standard Type

Package / CaseVertical, No Base, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2mH @ 100kHz 2 Line Common Mode Choke Through Hole 2A DCR 110mOhm

To learn about the specification of SC-02-200, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SC-02-200 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SC-02-200.
We are offering SC-02-200 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SC-02-200 - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	SC, Standard Type
Standard Package	300
Manufacturer	KEMET
Series	SC
Packaging	Bulk
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	2mH @ 100kHz
Current Rating (Max)	2A
DC Resistance (DCR) (Max)	110mOhm
Voltage Rating - DC	250V
Voltage Rating - AC	250V
Operating Temperature	-25°C ~ 105°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	0.906" Dia x 0.728" W (23.00mm x 18.50mm)
Height (Max)	0.906" (23.00mm)
Package / Case	Vertical, No Base, 4 PC Pin
