Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	SCRH104R Series
Standard Package	1
Manufacturer	Signal Transformer
Series	SCRH104R
Packaging	Cut Tape (CT)
Part Status	Active
Type	-
Material - Core	-
Inductance	10µH
Tolerance	±30%
Current Rating (Amps)	4.36A
Current - Saturation	4.4A
Shielding	Shielded
DC Resistance (DCR)	35mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max)	0.157" (4.00mm)

302R29N330JV3E-****-SC	Johanson Dielectrics Inc., 33pF ±5% 250V Ceramic Capacitor C0G, NP0 1808 (4520 Metric), SC	View
SCRH127-471	Signal Transformer, 470µH Shielded Inductor 920mA 980mOhm Max Nonstandard, SCRH127	View
502S47W472KV3E-****-SC	Johanson Dielectrics Inc., 4700pF ±10% 250V Ceramic Capacitor X7R 2220 (5750 Metric), SC	View
SCIHP0718-5R6M	Signal Transformer, 5.6µH Shielded Wirewound Inductor 2.8A 108mOhm Max Nonstandard, SCIHP0718	View
SCRH127-470	Signal Transformer, 47µH Shielded Inductor 2.62A 100mOhm Max Nonstandard, SCRH127	View
SC75-470	Signal Transformer, 47µH Unshielded Wirewound Inductor 1.47A 180mOhm Max Nonstandard, SC75	View
SCIH1040HC-R56M	Signal Transformer, 560nH Shielded Wirewound Inductor 25A 1.8mOhm Max Nonstandard, SCIH1040HC	View
302R29N221KV3E-****-SC	Johanson Dielectrics Inc., 220pF ±10% 250V Ceramic Capacitor C0G, NP0 1808 (4520 Metric), SC	View
502R30W681KV3E-****-SC	Johanson Dielectrics Inc., 680pF ±10% 250V Ceramic Capacitor X7R 2211 (5728 Metric), SC	View
SC00820710	Skyworks Solutions Inc., 8.2pF Silicon Capacitor Nonstandard, SC	View
SC-02-200	KEMET, 2mH @ 100kHz 2 Line Common Mode Choke Through Hole 2A DCR 110mOhm, SC	View
502R29W102KV3E-****-SC	Johanson Dielectrics Inc., 1000pF ±10% 250V Ceramic Capacitor X7R 1808 (4520 Metric), SC	View

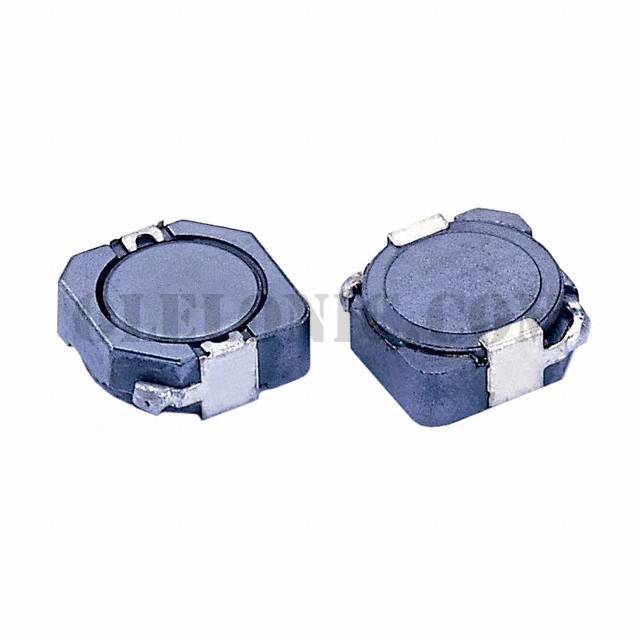

SCRH104R-100
