SC-30-100
SC-30-100
Part Number SC-30-100
Manufacturer KEMET

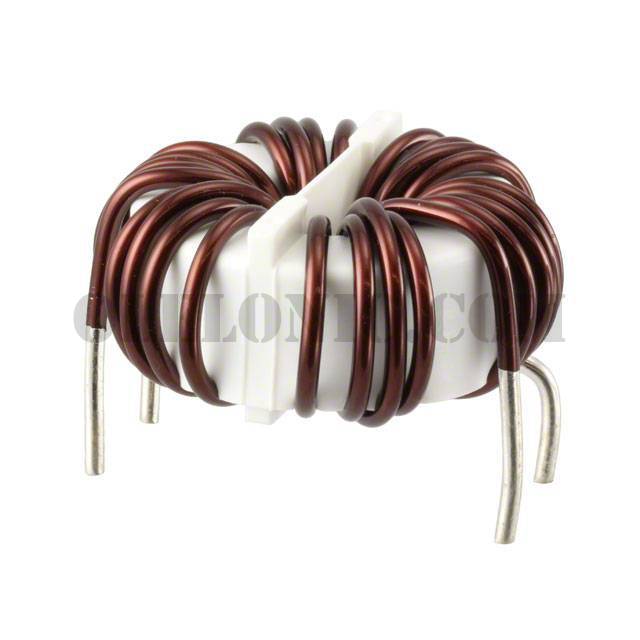

Description COMMON MODE CHOKE 1MH 30A 2LN TH
Package / Case Horizontal, No Base, 4 PC Pin
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 1mH @ 100kHz 2 Line Common Mode Choke Through Hole 30A DCR 6mOhm
To learn about the specification of SC-30-100, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SC-30-100 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SC-30-100.
We are offering SC-30-100 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SC-30-100 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet SC, Standard Type
Standard Package 60
Manufacturer KEMET
Series SC
Packaging Bulk
Part Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1mH @ 100kHz
Current Rating (Max) 30A
DC Resistance (DCR) (Max) 6mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Operating Temperature -25°C ~ 105°C
Ratings -
Approvals -
Features -
Mounting Type Through Hole
Size / Dimension 2.441" Dia (62.00mm)
Height (Max) 1.378" (35.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
