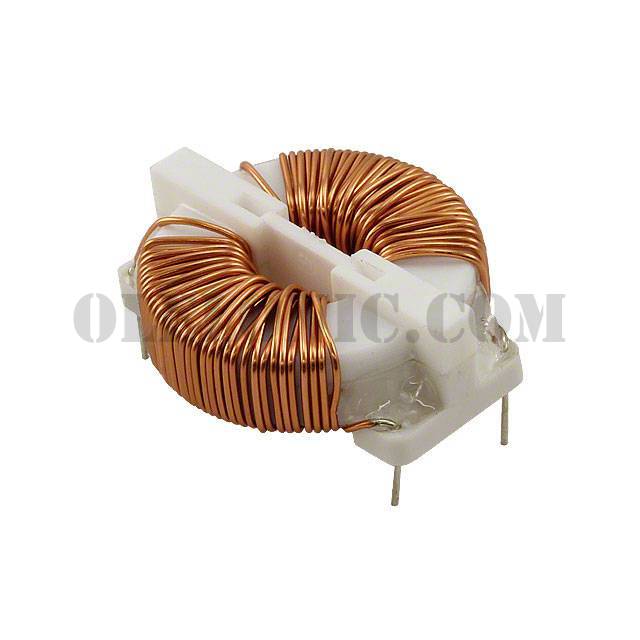

SC-02-20JS

SC-02-20JS

Part NumberSC-02-20JS

ManufacturerKEMET

DescriptionCOMMON MODE CHOKE 1MH 2A 2LN TH

DatasheetSC-JS Series

Package / CaseHorizontal, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1mH @ 1kHz 2 Line Common Mode Choke Through Hole 2A DCR 100mOhm

To learn about the specification of SC-02-20JS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SC-02-20JS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SC-02-20JS.
We are offering SC-02-20JS for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SC-02-20JS - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	SC-JS Series
Standard Package	400
Manufacturer	KEMET
Series	SC
Packaging	Bulk
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	1mH @ 1kHz
Current Rating (Max)	2A
DC Resistance (DCR) (Max)	100mOhm
Voltage Rating - DC	250V
Voltage Rating - AC	250V
Operating Temperature	-25°C ~ 105°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	1.142" L x 1.024" W (29.00mm x 26.00mm)
Height (Max)	0.472" (12.00mm)
Package / Case	Horizontal, 4 PC Pin

SC-02-20JS - Related Products

	SC-02-20JS	KEMET, 1mH @ 1kHz 2 Line Common Mode Choke Through Hole 2A DCR 100mOhm, SC	View
	SC-03-08JS	KEMET, 800µH @ 1kHz 2 Line Common Mode Choke Through Hole 3A DCR 60mOhm, SC	View
	SC-03-10JS	KEMET, 1mH @ 1kHz 2 Line Common Mode Choke Through Hole 3A DCR 80mOhm, SC	View
