SC-01-80G
SC-01-80G

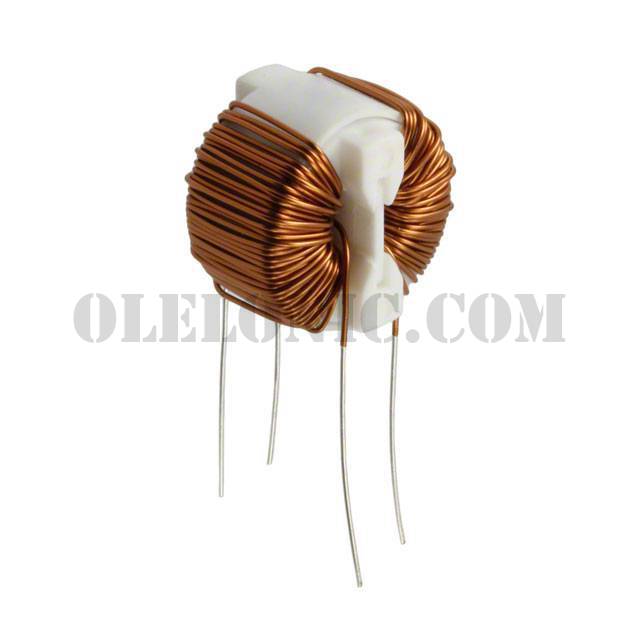

Part Number SC-01-80G Manufacturer KEMET Description COMMON MODE CHOKE 8MH 1A 2LN TH Package / Case Vertical, No Base, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 8mH @ 100kHz 2 Line Common Mode Choke Through Hole 1A DCR 300mOhm
To learn about the specification of SC-01-80G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SC-01-80G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SC-01-80G.
We are offering SC-01-80G for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SC-01-80G - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet SC-G, GS Series Standard Package 1300 Manufacturer KEMET Series SC Packaging Bulk Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 8mH @ 100kHz Current Rating (Max) 1A DC Resistance (DCR) (Max) 300mOhm Voltage Rating - DC 250V Voltage Rating - AC 250V Operating Temperature -25°C ~ 105°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 0.689" Dia x 0.551" W (17.50mm x 14.00mm) Height (Max) 0.689" (17.50mm) Package / Case Vertical, No Base, 4 PC Pin
