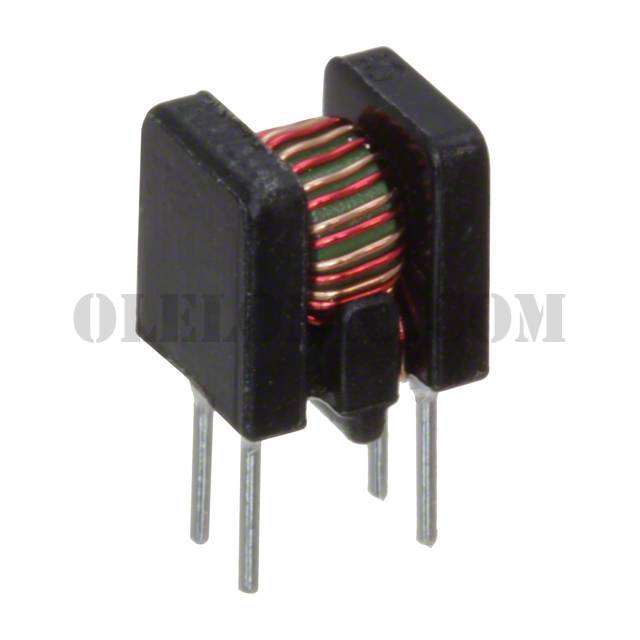

SBT-0160W

SBT-0160W

Part NumberSBT-0160W

ManufacturerKEMET

DescriptionCMC TROID, NI-ZN, 60UH, TH

DatasheetSBT-01W Series Datasheet

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description60µH @ 1kHz 2 Line Common Mode Choke Through Hole 500mA DCR 45mOhm

To learn about the specification of SBT-0160W, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SBT-0160W with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SBT-0160W.
We are offering SBT-0160W for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SBT-0160W - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	SBT-01W Series Datasheet
Standard Package	1000
Manufacturer	KEMET
Series	*
Part Status	Active
Filter Type	Signal Line
Number of Lines	2
Inductance @ Frequency	60µH @ 1kHz
Current Rating (Max)	500mA
DC Resistance (DCR) (Max)	45mOhm
Voltage Rating - DC	50V
Voltage Rating - AC	-
Operating Temperature	-25°C ~ 70°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Height (Max)	0.354" (9.00mm)
Package / Case	Vertical, 4 PC Pin
