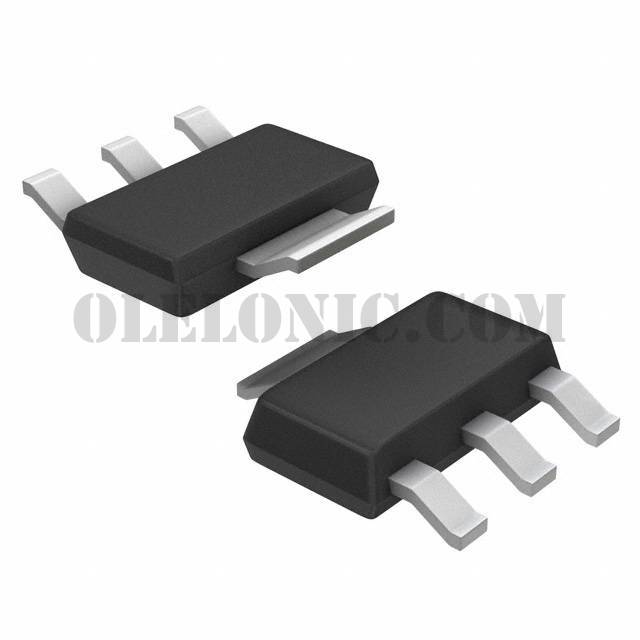

SBCP68T1G

SBCP68T1G

Part NumberSBCP68T1G

ManufacturerON Semiconductor

DescriptionTRANS NPN 20V 1A SOT223

DatasheetBCP/SBCP68T1G

Package / CaseTO-261-4, TO-261AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 20V 1A 60MHz 1.5W Surface Mount SOT-223

To learn about the specification of SBCP68T1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SBCP68T1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SBCP68T1G.
We are offering SBCP68T1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SBCP68T1G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	BCP/SBCP68T1G
Standard Package	1000
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	20V
Vce Saturation (Max) @ Ib, Ic	500mV @ 100mA, 1A
Current - Collector Cutoff (Max)	10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	85 @ 500mA, 1V
Power - Max	1.5W
Frequency - Transition	60MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Supplier Device Package	SOT-223
Base Part Number	BCP68
