S14100037
S14100037

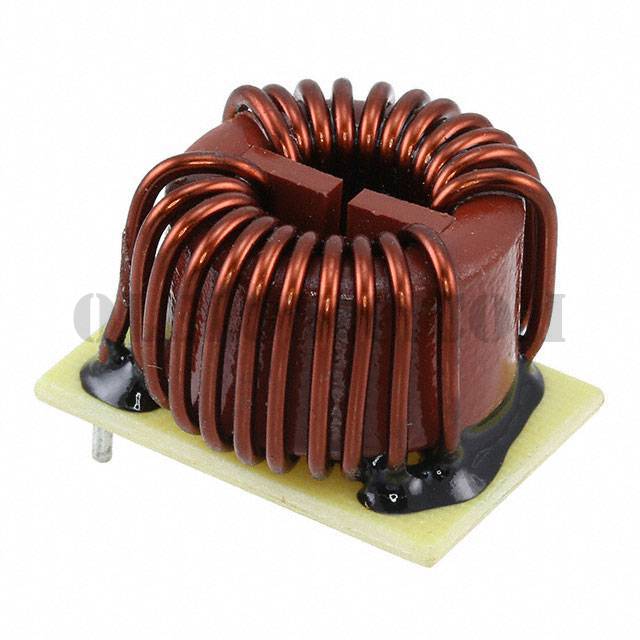

Part Number S14100037 Description COMMON MODE CHOKE 1MH 15A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 1mH @ 10kHz 2 Line Common Mode Choke Through Hole 15A DCR 7.5mOhm
To learn about the specification of S14100037, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add S14100037 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of S14100037.
We are offering S14100037 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
S14100037 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet S14100037 Spec Sheet Standard Package 20 Manufacturer Wurth Electronics Inc. Series WE-CMBH Packaging Tray Part Status Active Filter Type - Number of Lines 2 Inductance @ Frequency 1mH @ 10kHz Current Rating (Max) 15A DC Resistance (DCR) (Max) 7.5mOhm Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.220" L x 1.102" W (31.00mm x 28.00mm) Height (Max) 0.827" (21.00mm) Package / Case Horizontal, 4 PC Pin
