S14100036

S14100036

Part NumberS14100036

ManufacturerWurth Electronics Inc.

DescriptionFIXED IND 56UH 17A 8.5 MOHM

DatasheetS14100036 Spec Sheet

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

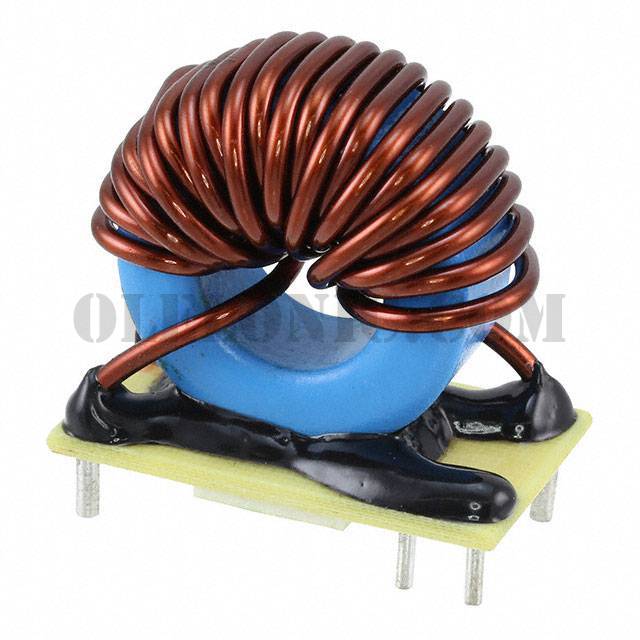

Detailed Description56µH Unshielded Toroidal Inductor 17A 8.5mOhm Max Radial, Vertical (Open)

To learn about the specification of S14100036, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add S14100036 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of S14100036.
We are offering S14100036 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

S14100036 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	S14100036 Spec Sheet
Standard Package	16
Manufacturer	Wurth Electronics Inc.
Series	WE-LCB
Packaging	Tray
Part Status	Active
Type	Toroidal
Material - Core	Iron Powder
Inductance	56µH
Tolerance	±20%
Current Rating (Amps)	17A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	8.5mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical (Open)
Supplier Device Package	-
Size / Dimension	1.417" L x 0.906" W (36.00mm x 23.00mm)
Height - Seated (Max)	1.378" (35.00mm)

S14100036 - Related Products

	S14100032	Wurth Electronics Inc., 150µH Unshielded Toroidal Inductor 10A 21mOhm Max Radial, Horizontal (Open), WE-LCB	View
	S14100036	Wurth Electronics Inc., 56µH Unshielded Toroidal Inductor 17A 8.5mOhm Max Radial, Vertical (Open), WE-LCB	View
